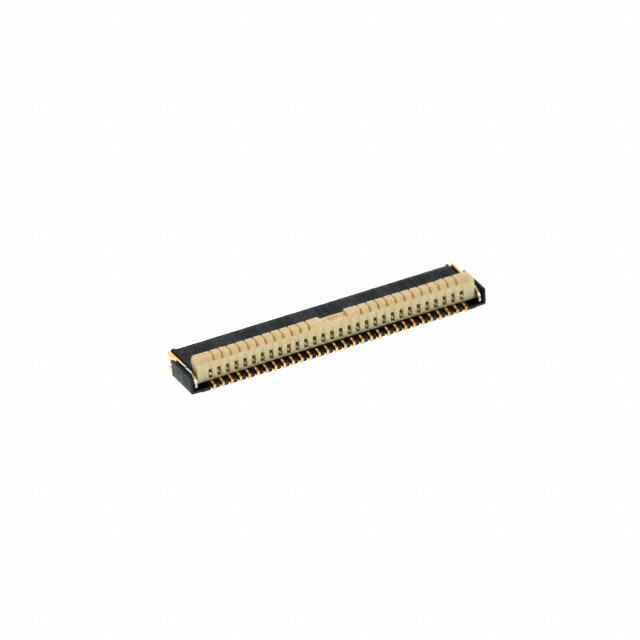

AYF532865TA

Active

Panasonic Electric Works

CONN FPC 28POS 0.5MM R/A

Search across all available documentation for this part.

Active

Panasonic Electric Works

CONN FPC 28POS 0.5MM R/A

Technical Specifications

Parameters and characteristics for this part

Specification	AYF532865TA

Actuator Material	Liquid Crystal Polymer (LCP)
Cable End Type	Notched
Connector/Contact Type	Contacts, Top and Bottom
Contact Finish	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	500 mA
FFC, FCB Thickness	0.3 mm
Flat Flex Type	FPC
Height Above Board [z]	1 mm
Height Above Board [z]	0.039 in
Housing Material	Liquid Crystal Polymer (LCP)
Locking Feature	Flip Lock, Backlock
Material Flammability Rating	UL94 V-0
Mating Cycles	20
Mounting Type	Surface Mount, Right Angle
Number of Positions	28
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.5 mm
Pitch [x]	0.02 in
Termination	Solder
Voltage Rating	50 V

Part	Contact Material	Termination	Current Rating (Amps)	Pitch [x]	Pitch [x]	Mounting Type	Voltage Rating	Height Above Board [z]	Height Above Board [z]	Connector/Contact Type	Locking Feature	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Material	Mating Cycles	Number of Positions	FFC, FCB Thickness	Contact Finish	Material Flammability Rating	Cable End Type	Flat Flex Type	Housing Material
Panasonic Electric Works AYF532865TA	Copper Alloy	Solder	500 mA	0.5 mm	0.02 in	Surface Mount Right Angle	50 V	1 mm	0.039 in	Contacts Top and Bottom	Backlock Flip Lock	85 °C	-55 °C	Liquid Crystal Polymer (LCP)	20	28	0.3 mm	Gold	UL94 V-0	Notched	FPC	Liquid Crystal Polymer (LCP)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

28 Position FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle
