ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC 0.080DIA GOLD
Deep-Dive with AI
Search across all available documentation for this part.
3601-1-07-21-00-00-08-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC 0.080DIA GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3601-1-07-21-00-00-08-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 0.51 µm |
| Contact Finish Thickness | 20 µin |
| Contact Material | Brass Alloy |
| Insulation | Non-Insulated |
| Length - Above Flange [x] | 0.2 in |
| Length - Above Flange [x] | 5.08 mm |
| Length - Below Flange [x] | 6.99 mm |
| Length - Below Flange [x] | 0.275 in |
| Length - Overall | 12.85 mm |
| Length - Overall [x] | 0.506 in |
| Mounting Type | Free Hanging (In-Line) |
| Pin Size - Above Flange [diameter] | 2.03 mm |
| Pin Size - Above Flange [diameter] | 0.08 in |
| Terminal Style | Wire |
| Terminal Type | PC Pin |
| Termination | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.11 | |
| 10 | $ 0.94 | |||
| 25 | $ 0.88 | |||
| 50 | $ 0.84 | |||
| 100 | $ 0.80 | |||
| 250 | $ 0.75 | |||
| 500 | $ 0.71 | |||
| 1000 | $ 0.68 | |||
| 3000 | $ 0.63 | |||
Description
General part information
3601-1 Series

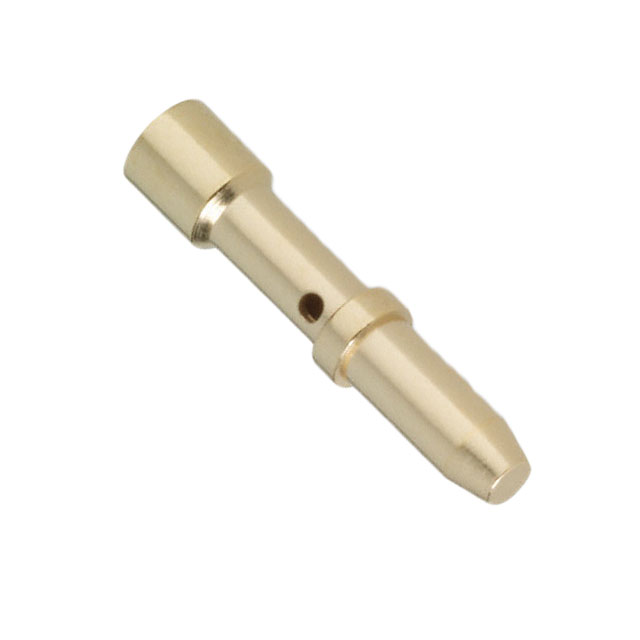

PC Pin Terminal Connector Free Hanging (In-Line) Gold 0.080" (2.03mm) Dia
