PTIH-8-4P

Active

Amphenol Aerospace Operations

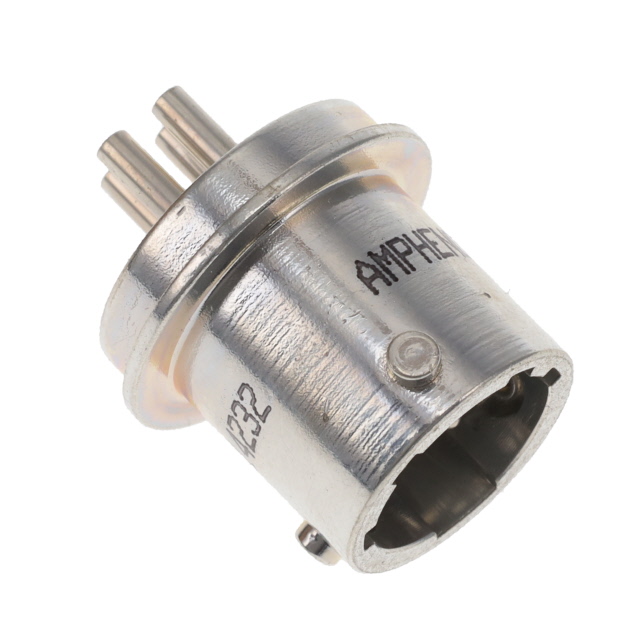

CONN RCPT MALE 4P TIN SOLDER CUP

Search across all available documentation for this part.

Active

Amphenol Aerospace Operations

CONN RCPT MALE 4P TIN SOLDER CUP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PTIH-8-4P	PTIH Series

Applications	Military, Mass Transit, Instrumentation, Aerospace, Industrial	Military, Mass Transit, Instrumentation, Aerospace, Industrial
Color	Olive Drab	Olive Drab
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	5 A	5 A
Fastening Type	Bayonet Lock	Bayonet Lock
Insert Material	Neoprene	Neoprene
Number of Positions	4	4 - 6
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	N	N
Primary Material	Metal	Metal
Shell Finish	Olive Drab Chromate over Cadmium	Olive Drab Chromate over Cadmium
Shell Material	Aluminum	Aluminum
Shell Size - Insert	8-4	10-6, 8-4
Shielding	Unshielded	Unshielded

CONN RCPT MALE 6P TIN SOLDER CUP

Part	Orientation	Color	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Shell Finish	Primary Material	Applications	Shell Size - Insert	Shell Material	Insert Material	Fastening Type	Connector Type	Contact Material	Shielding	Number of Positions
Amphenol Aerospace Operations PTIH-10-6P	N	Olive Drab	5 A	-55 °C	125 °C	Olive Drab Chromate over Cadmium	Metal	Aerospace, Industrial, Instrumentation, Mass Transit, Military	10-6	Aluminum	Neoprene	Bayonet Lock	Male Pins, Receptacle	Copper Alloy	Unshielded	6
Amphenol Aerospace Operations PTIH-8-4P	N	Olive Drab	5 A	-55 °C	125 °C	Olive Drab Chromate over Cadmium	Metal	Aerospace, Industrial, Instrumentation, Mass Transit, Military	8-4	Aluminum	Neoprene	Bayonet Lock	Male Pins, Receptacle	Copper Alloy	Unshielded	4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Receptacle, Male Pins Solder Cup
