Description
General part information

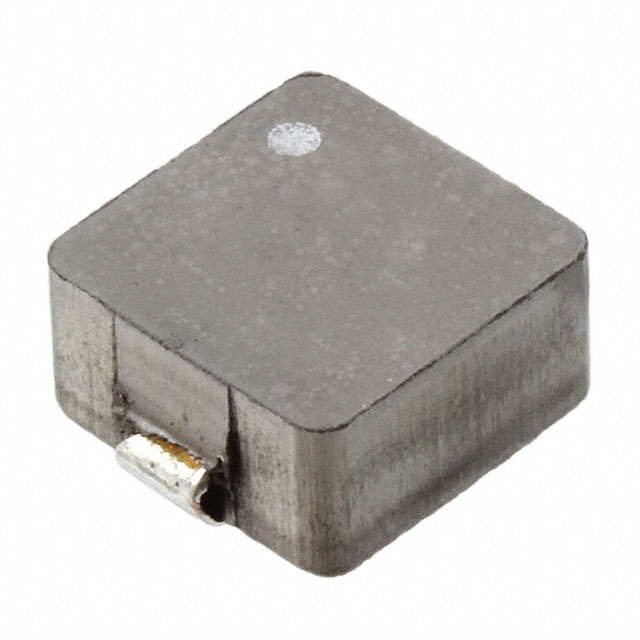

MPCH1055 Series
1.3 µH Shielded Inductor 18.5 A 2.3mOhm Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | MPCH1055L1R3 |
|---|---|
| Current - Saturation (Isat) | 17 A |
| Current Rating | 18.5 A |
| DC Resistance (DCR) | 2.3 mOhm |
| Height - Seated (Max) | 0.217 in |
| Inductance | 1.3 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Metal Composite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.461 in |
| Size / Dimension Width | 0.394 in |
| Tolerance | 20 % |
