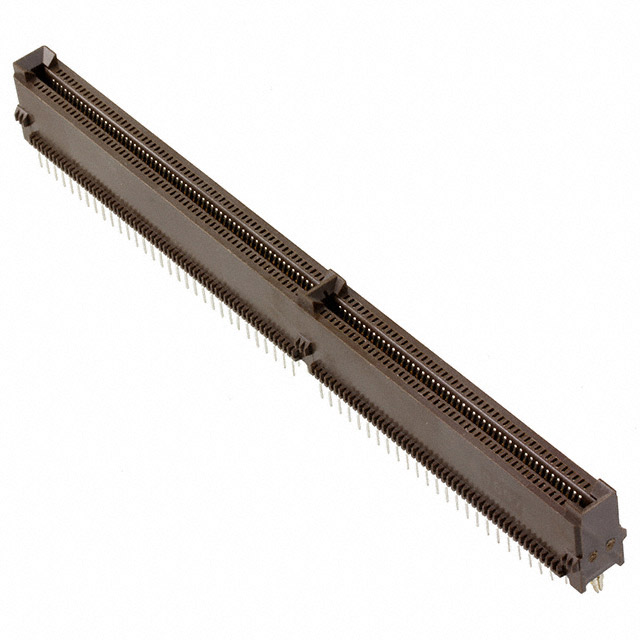

2-145090-6
ObsoleteTE Connectivity Raychem Cable Protection
CONN EDGE DUAL FML 110POS 0.050
Deep-Dive with AI
Search across all available documentation for this part.
2-145090-6
ObsoleteTE Connectivity Raychem Cable Protection
CONN EDGE DUAL FML 110POS 0.050
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2-145090-6 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Phosphor Bronze |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole |
| Number of Positions | 110 positions |
| Number of Rows | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 0.05 in |
| Pitch [x] | 1.27 mm |
| Read Out | Dual |
| Termination | Solder, Staggered |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
145090 Series
110 Position Female Connector Non Specified - Dual Edge Gold 0.050" (1.27mm)
