9258 0101000
ActiveBelden Inc.

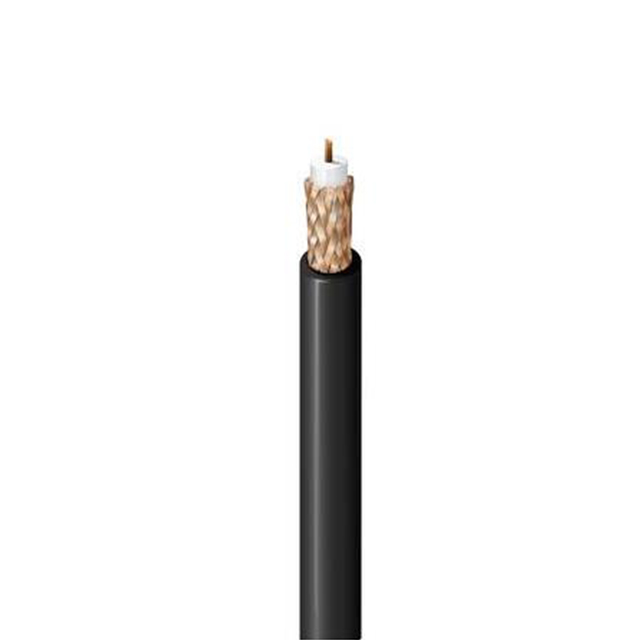

CABLE COAXIAL RG-8 16AWG 1000'
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
9258 0101000
ActiveBelden Inc.
CABLE COAXIAL RG-8 16AWG 1000'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 9258 0101000 |
|---|---|
| Cable Group | RG-8 |
| Cable Type | Coaxial |
| Conductor Material | Copper, Bare |
| Conductor Strand [custom] | 19 Strands |
| Conductor Strand [custom] | 29 AWG |
| Dielectric Diameter [diameter] | 3.94 mm |
| Dielectric Diameter [diameter] | 0.155 " |
| Impedance | 50 Ohms |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Black |
| Length | 304.8 m |
| Length | 1000 ft |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -40 °C |
| Shield Coverage | 95 % |
| Shield Material | Copper, Bare |
| Shield Type | Braid |
| Usage | RF Signal |
| VoP, Velocity of Propagation | 82 |
| Wire Gauge | 16 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1000 | $ 1.83 | |
Description
General part information
9258 Series
Coaxial Cable 16 AWG RG-8 1000.0' (304.80m) 50 Ohms
Documents
Technical documentation and resources
