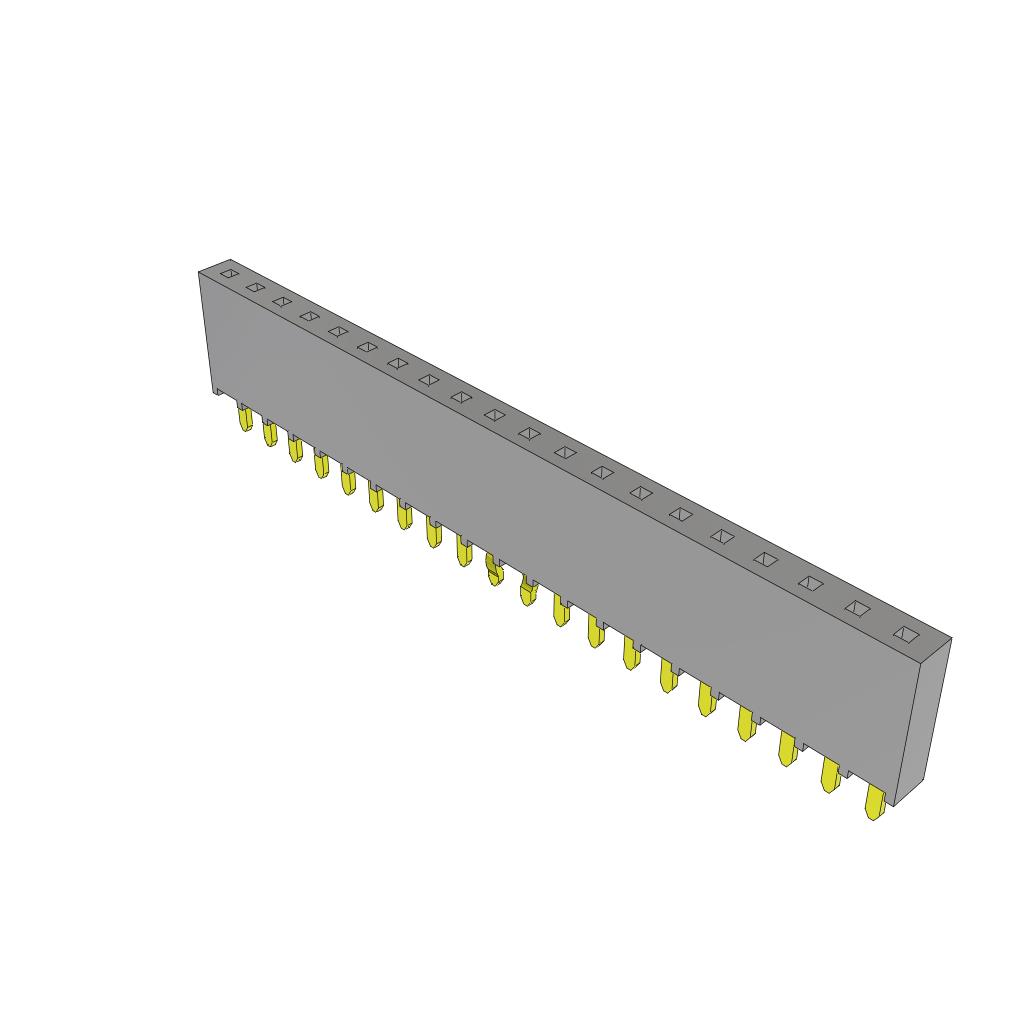

SSW-120-01-T-S-LL

Active

Samtec Inc.

CONN RCPT 20POS 0.1 TIN PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTiger Buy™ Socket Strip with PCB Tails, .100" Pitch Datasheet +2

SSW-120-01-T-S-LL

Active

Samtec Inc.

CONN RCPT 20POS 0.1 TIN PCB

Deep-Dive with AI

DocumentsTiger Buy™ Socket Strip with PCB Tails, .100" Pitch Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SSW-120-01-T-S-LL

Connector Type	Receptacle
Contact Finish - Post	Tin
Contact Length - Post	0.104 in
Contact Length - Post	2.64 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Forked
Current Rating (Amps)	4.7 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.335 "
Insulation Height	8.51 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Style	Board to Board, Cable
Termination	Kinked Pin, Solder

SSW-120 Series

...

Part	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Termination	Insulation Height	Insulation Height	Contact Type	Contact Finish - Post	Contact Finish - Mating	Number of Rows	Contact Material	Insulation Color	Contact Shape	Fastening Type	Material Flammability Rating	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Features	Number of Positions Loaded	Insulation Material	Style	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Mounting Type	Contact Length - Post	Contact Length - Post	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Height [z]	Insulation Height [z]
Samtec Inc. SSW-120-22-G-D-VS-K-TR	2.54 mm	0.1 in	Solder	0.335 "	8.51 mm	Forked	Gold	Gold	2	Phosphor Bronze	Black	Square	Push-Pull	UL94 V-0	Receptacle	-55 °C	125 °C	40	Pick and Place	All	Liquid Crystal Polymer (LCP)	Board to Board Cable	3 µin	0.076 µm	0.1 in	2.54 mm	0.51 µm	20 µin	4.7 A	Surface Mount
Samtec Inc. SSW-120-02-S-D	2.54 mm	0.1 in	Solder	0.335 "	8.51 mm	Forked	Tin	Gold	2	Phosphor Bronze	Black	Square	Push-Pull	UL94 V-0	Receptacle	-55 °C	125 °C	40		All	Liquid Crystal Polymer (LCP)	Board to Board Cable			0.1 in	2.54 mm	0.76 Ám	30 Áin	4.7 A	Through Hole	4.93 mm	0.194 in
Samtec Inc. SSW-120-04-F-S			Solder	0.335 "	8.51 mm	Forked	Tin	Gold	1	Phosphor Bronze	Black	Square	Push-Pull	UL94 V-0	Receptacle	-55 °C	125 °C	20		All	Liquid Crystal Polymer (LCP)	Board to Board Cable			0.1 in	2.54 mm	0.076 µm	3 µin	4.7 A	Through Hole			0.584 "	14.83 mm
Samtec Inc. SSW-120-01-T-S-LL			Kinked Pin Solder	0.335 "	8.51 mm	Forked	Tin		1	Phosphor Bronze	Black	Square	Push-Pull	UL94 V-0	Receptacle	-55 °C	105 ░C	20		All	Liquid Crystal Polymer (LCP)	Board to Board Cable			0.1 in	2.54 mm			4.7 A	Through Hole	2.64 mm	0.104 in
Samtec Inc. SSW-120-21-S-D	2.54 mm	0.1 in	Solder	0.335 "	8.51 mm	Forked	Tin	Gold	2	Phosphor Bronze	Black	Square	Push-Pull	UL94 V-0	Receptacle	-55 °C	125 °C	40		All	Liquid Crystal Polymer (LCP)	Board to Board Cable			0.1 in	2.54 mm	0.76 Ám	30 Áin	4.7 A	Through Hole	2.64 mm	0.104 in
Samtec Inc. SSW-120-02-G-D-RA-N	2.54 mm	0.1 in	Solder	0.195 in	4.95 mm	Forked	Gold	Gold	2	Phosphor Bronze	Black	Square	Push-Pull	UL94 V-0	Receptacle	-55 °C	125 °C	40		All	Liquid Crystal Polymer (LCP)	Board to Board Cable	3 µin	0.076 µm	0.1 in	2.54 mm	0.51 µm	20 µin	4.7 A	Through Hole Right Angle	2.54 mm	0.1 in
Samtec Inc. SSW-120-02-T-D-RA	2.54 mm	0.1 in	Solder	0.195 in	4.95 mm	Forked	Tin		2	Phosphor Bronze	Black	Square	Push-Pull	UL94 V-0	Receptacle	-55 °C	105 ░C	40		All	Liquid Crystal Polymer (LCP)	Board to Board Cable			0.1 in	2.54 mm			4.7 A	Through Hole Right Angle	2.54 mm	0.1 in
Samtec Inc. SSW-120-22-F-D-VS-N	2.54 mm	0.1 in	Solder	0.335 "	8.51 mm	Forked	Tin	Gold	2	Phosphor Bronze	Black	Square	Push-Pull	UL94 V-0	Receptacle	-55 °C	125 °C	40		All	Liquid Crystal Polymer (LCP)	Board to Board Cable			0.1 in	2.54 mm	0.076 µm	3 µin	4.7 A	Surface Mount
Samtec Inc. SSW-120-22-G-S-RA			Solder			Forked	Gold	Gold	1	Phosphor Bronze	Black	Square	Push-Pull	UL94 V-0	Receptacle	-55 °C	125 °C	20		All	Liquid Crystal Polymer (LCP)	Board to Board Cable	3 µin	0.076 µm	0.1 in	2.54 mm	0.51 µm	20 µin	4.7 A	Through Hole Right Angle	2.54 mm	0.1 in			0.095 in	2.41 mm
Samtec Inc. SSW-120-21-L-S			Solder	0.335 "	8.51 mm	Forked	Tin	Gold	1	Phosphor Bronze	Black	Square	Push-Pull	UL94 V-0	Receptacle	-55 °C	125 °C	20		All	Liquid Crystal Polymer (LCP)	Board to Board Cable			0.1 in	2.54 mm	0.25 çm	10 çin	4.7 A	Through Hole	2.64 mm	0.104 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.38
		50	$ 2.20
		100	$ 1.87
		500	$ 1.66
		1000	$ 1.48
