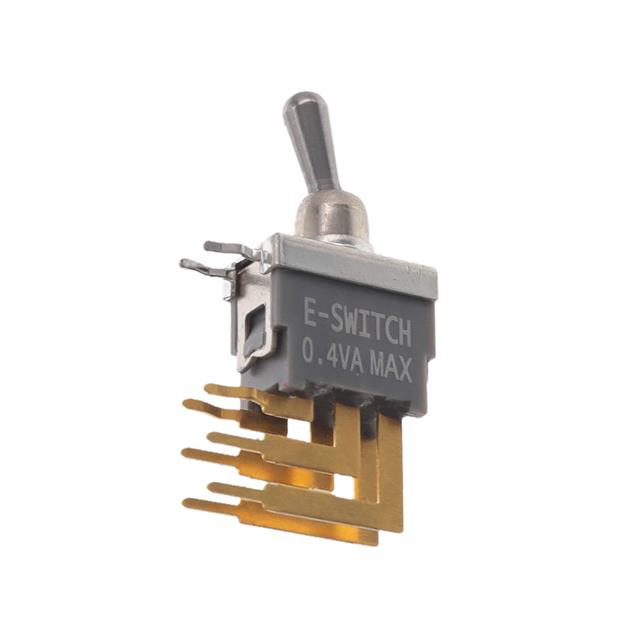

200RDP1T1B1M7R

Active

E-Switch

SWITCH TOGGLE DPDT 0.4VA 48V

Search across all available documentation for this part.

Active

E-Switch

SWITCH TOGGLE DPDT 0.4VA 48V

Technical Specifications

Parameters and characteristics for this part

Specification	200RDP1T1B1M7R

Actuator Length [x]	6 mm
Actuator Type	Standard Round
Bushing Thread	Unthreaded
Circuit	DPDT
Current Rating (Amps)	0.4 VA
Illumination	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Through Hole, Vertical, Right Angle
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Switch Function	On-On
Termination Style	PC Pin
Voltage Rating - AC	48 V
Voltage Rating - DC	48 V

SWITCH TOGGLE DPDT 0.4VA 48V

Part	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Switch Function	Voltage Rating - AC	Voltage Rating - DC	Bushing Thread	Illumination	Termination Style	Actuator Type	Ingress Protection	Circuit	Actuator Length [x]
E-Switch 200RDP1T1B1M7R	Right Angle, Through Hole, Vertical	-30 ░C	85 °C	0.4 VA	On-On	48 V	48 V	Unthreaded	Non-Illuminated	PC Pin	Standard Round	IP67 - Dust Tight, Waterproof	DPDT	6 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch DPDT Through Hole, Right Angle, Vertical
