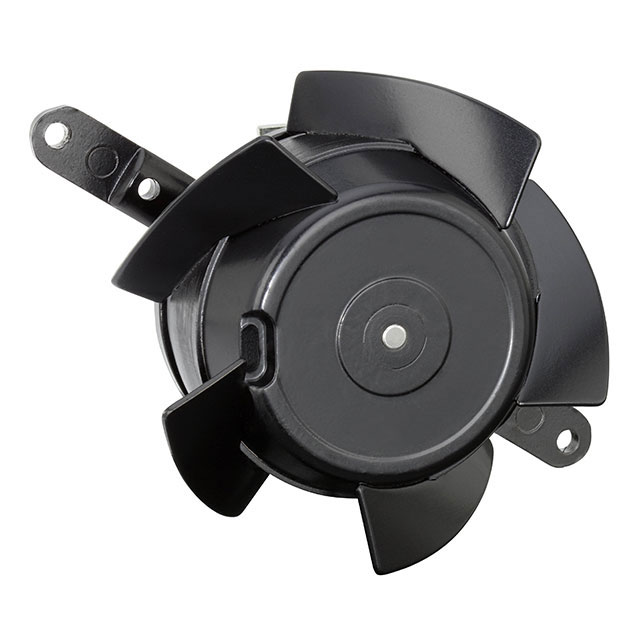

8556TA
Activeebm-papst Inc.
FAN AXIAL 76X37MM 230VAC WIRE
8556TA
Activeebm-papst Inc.
FAN AXIAL 76X37MM 230VAC WIRE
Description
General part information
8556 Series
Fan Tubeaxial 230VAC Round - 76mm Dia Ball 22.4 CFM (0.627m³/min) 2 Wire Leads
Technical Specifications
Parameters and characteristics for this part
| Specification | 8556TA |
|---|---|
| Air Flow | 22.4 CFM |
| Approval Agency | CSA, UL, CE, VDE |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Lifetime | 52500 Hrs |
| Material - Blade | Metal |
| Material - Frame | Metal |
| Noise | 26 dB |
| Operating Temperature (Max) | 194 °F |
| Operating Temperature (Min) | -40 °F |
| Power (Watts) | 12 W |
| RPM | 2750 RPM |
| Size / Dimension Diameter | 76 mm |
| Size / Dimension Shape | Round |
| Termination | 2 Wire Leads |
| Termination Leads Count | 2 leads |
| Termination Type | Wire Leads |
| Voltage - Rated | 230 VAC |
| Weight | 0.816 lb |
| Width | 37 mm |
