Q-0K01L000R108i
ActiveAmphenol Custom Cable

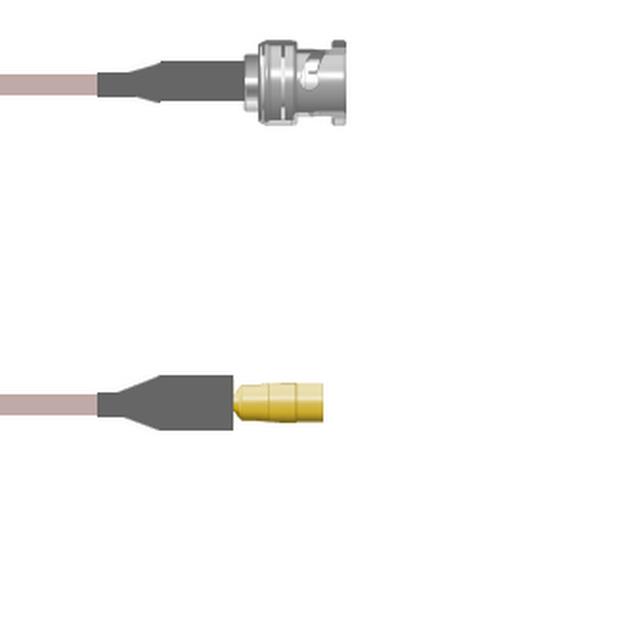

CBL ASSY BNC-MMCX PLUG-JACK 9'
Deep-Dive with AI
Search across all available documentation for this part.
Q-0K01L000R108i
ActiveAmphenol Custom Cable
CBL ASSY BNC-MMCX PLUG-JACK 9'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-0K01L000R108i |
|---|---|
| 1st Connector | BNC Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | MMCX Jack |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Type | RG-316 DB |
| Color | Copper |
| Features | Shielded |
| Frequency - Max [Max] | 4 GHz |
| Length | 2.7 m |
| Length | 9 ft |
| Length | 108 in |
| Overall Impedance | 50 Ohms |
| Style | BNC to MMCX |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 347.58 | |
| 25 | $ 340.67 | |||
| 50 | $ 333.76 | |||
| 100 | $ 326.86 | |||
| 250 | $ 319.95 | |||
Description
General part information
Q-0K01L0 Series
Cable Assembly Coaxial BNC to MMCX RG-316 DB 108.0" (2.7m) 9.0'
Documents
Technical documentation and resources
No documents available
