87133-9
ActiveTE Connectivity AMP Connectors

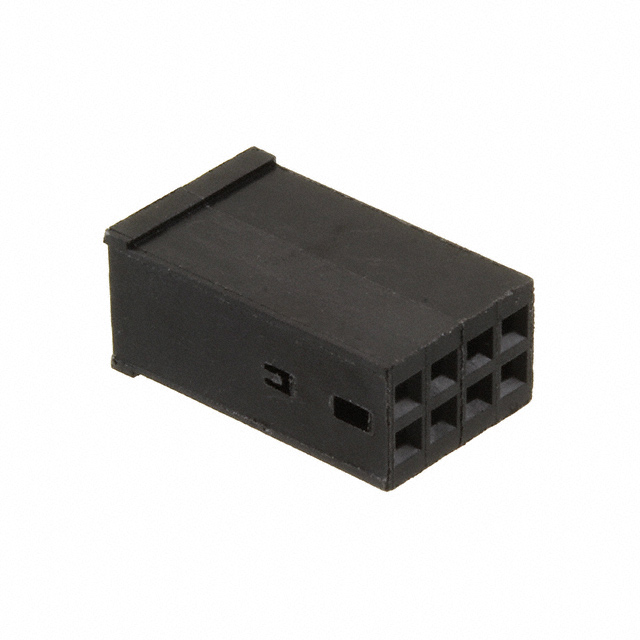

CONN RCPT HSG 8POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
87133-9
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 8POS 2.54MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 87133-9 | 87133 Series |
|---|---|---|
| Color | Black | Black |
| Connector Type | Receptacle | Receptacle |
| Contact Termination | Crimp | Crimp |
| Contact Type | Female Socket | Female Socket |
| Insulation Material | Polyester, Glass Filled | Polyester, Glass Filled |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 8 | 4 - 10 |
| Number of Positions | - | 16 |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Pitch [x] | 2.54 mm | 2.54 mm |
| Pitch [x] | 0.1 in | 0.1 in |
| Row Spacing | 2.54 mm | 2.54 mm |
| Row Spacing [x] | 0.1 in | 0.1 in |
87133 Series
CONN RCPT HSG 16POS 2.54MM
| Part | Contact Termination | Color | Number of Positions | Connector Type | Row Spacing [x] | Row Spacing | Pitch [x] | Pitch [x] | Mounting Type | Note | Contact Type | Number of Rows | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Material | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1-87133-3 | Crimp | Black | 16 | Receptacle | 0.1 in | 2.54 mm | 2.54 mm | 0.1 in | Free Hanging (In-Line) | Contacts Not Included | Female Socket | 2 | ||||
TE Connectivity AMP Connectors 87133-9 | Crimp | Black | Receptacle | 0.1 in | 2.54 mm | 2.54 mm | 0.1 in | Free Hanging (In-Line) | Contacts Not Included | Female Socket | 2 | -65 ░C | 105 ░C | Polyester, Glass Filled | 8 | |
TE Connectivity AMP Connectors 87133-8 | Crimp | Black | Receptacle | 0.1 in | 2.54 mm | 2.54 mm | 0.1 in | Free Hanging (In-Line) | Contacts Not Included | Female Socket | 2 | -65 ░C | 105 ░C | Polyester, Glass Filled | 6 | |
TE Connectivity AMP Connectors 87133-7 | Crimp | Black | Receptacle | 0.1 in | 2.54 mm | 2.54 mm | 0.1 in | Free Hanging (In-Line) | Contacts Not Included | Female Socket | 2 | -65 ░C | 105 ░C | Polyester, Glass Filled | 6 | |
TE Connectivity AMP Connectors 87133-1 | Crimp | Black | Receptacle | 0.1 in | 2.54 mm | 2.54 mm | 0.1 in | Free Hanging (In-Line) | Contacts Not Included | Female Socket | 2 | -65 ░C | 105 ░C | Polyester, Glass Filled | 4 | |
TE Connectivity AMP Connectors 87133-2 | Crimp | Black | Receptacle | 0.1 in | 2.54 mm | 2.54 mm | 0.1 in | Free Hanging (In-Line) | Contacts Not Included | Female Socket | 2 | -65 ░C | 105 ░C | Polyester, Glass Filled | 10 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.43 | |
| 10 | $ 4.73 | |||
| 25 | $ 4.61 | |||
| 50 | $ 4.48 | |||
| 100 | $ 4.39 | |||
Description
General part information
87133 Series
8 Rectangular Connectors - Housings Receptacle Black 0.100" (2.54mm)
