87133-8

Active

TE Connectivity AMP Connectors

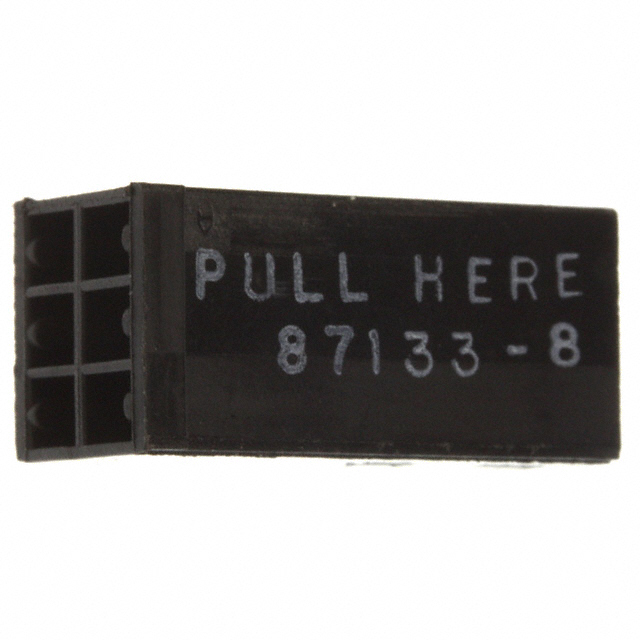

CONN RCPT HSG 6POS 2.54MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 6POS 2.54MM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5000	$ 1.40

General part information

6 Rectangular Connectors - Housings Receptacle Black 0.100" (2.54mm)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

CONN RCPT HSG 16POS 2.54MM

Part	Contact Termination	Color	Number of Positions	Connector Type	Row Spacing [x]	Row Spacing	Pitch [x]	Pitch [x]	Mounting Type	Note	Contact Type	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Number of Positions
TE Connectivity AMP Connectors 1-87133-3	Crimp	Black	16	Receptacle	0.1 in	2.54 mm	2.54 mm	0.1 in	Free Hanging (In-Line)	Contacts Not Included	Female Socket	2
TE Connectivity AMP Connectors 87133-9	Crimp	Black		Receptacle	0.1 in	2.54 mm	2.54 mm	0.1 in	Free Hanging (In-Line)	Contacts Not Included	Female Socket	2	-65 ░C	105 ░C	Polyester, Glass Filled	8
TE Connectivity AMP Connectors 87133-8	Crimp	Black		Receptacle	0.1 in	2.54 mm	2.54 mm	0.1 in	Free Hanging (In-Line)	Contacts Not Included	Female Socket	2	-65 ░C	105 ░C	Polyester, Glass Filled	6
TE Connectivity AMP Connectors 87133-7	Crimp	Black		Receptacle	0.1 in	2.54 mm	2.54 mm	0.1 in	Free Hanging (In-Line)	Contacts Not Included	Female Socket	2	-65 ░C	105 ░C	Polyester, Glass Filled	6
TE Connectivity AMP Connectors 87133-1	Crimp	Black		Receptacle	0.1 in	2.54 mm	2.54 mm	0.1 in	Free Hanging (In-Line)	Contacts Not Included	Female Socket	2	-65 ░C	105 ░C	Polyester, Glass Filled	4
TE Connectivity AMP Connectors 87133-2	Crimp	Black		Receptacle	0.1 in	2.54 mm	2.54 mm	0.1 in	Free Hanging (In-Line)	Contacts Not Included	Female Socket	2	-65 ░C	105 ░C	Polyester, Glass Filled	10
