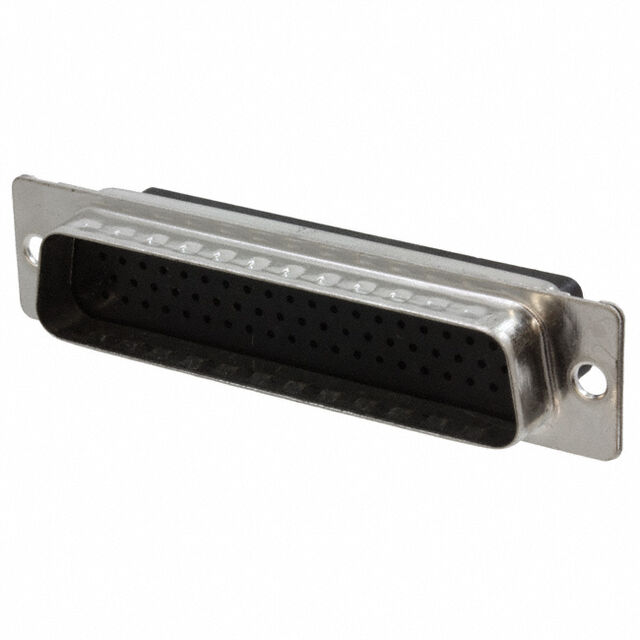

163X10209X

Active

Amphenol CONEC

HD D-SUB HOUSING, PLUG, 78POS, DD ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Amphenol CONEC

HD D-SUB HOUSING, PLUG, 78POS, DD ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	163X10209X

Color	Black
Connector Style	High Density, D-Sub
Connector Type	Plug for Male Contacts
Contact Type	Signal
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Grounding Indents
Flange Feature	Housing/Shell (Unthreaded)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	78
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Finish Thickness	320 µin
Shell Finish Thickness	8.13 µm

Part	Note	Contact Type	Connector Type	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Color	Connector Style	Flange Feature	Mounting Type	Shell Finish Thickness	Shell Finish Thickness	Number of Positions	Features
Amphenol CONEC 163X10209X	Contacts Not Included	Signal	Plug for Male Contacts	Polybutylene Terephthalate (PBT) Glass Filled	-55 °C	125 °C	Black	D-Sub High Density	Housing/Shell (Unthreaded)	Free Hanging (In-Line)	320 µin	8.13 µm	78	Grounding Indents

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Plug for Male Contacts Housing D-Sub, High Density Connector 78 Position
