325010-11-0
ActiveCurtis Industries

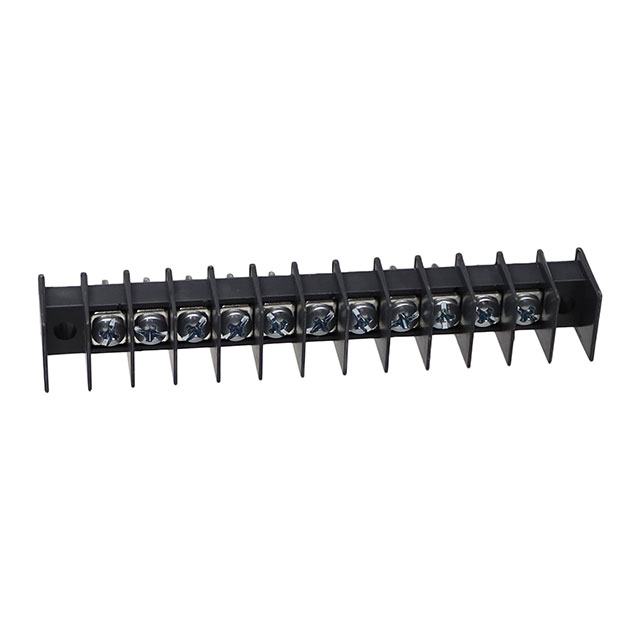

CONN BARRIER STRP 11CIRC 0.325"
Deep-Dive with AI
Search across all available documentation for this part.
325010-11-0
ActiveCurtis Industries
CONN BARRIER STRP 11CIRC 0.325"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 325010-11-0 | 325010 Series |
|---|---|---|
| - | - | |
| Barrier Type | 2 Wall (Dual) | 2 Wall (Dual) |
| Bottom Termination | PC Pin | PC Pin |
| Current Rating (Amps) | 15 A | 15 A |
| Features | Flange | Flange |
| Material - Insulation | Polypropylene (PP) | Polypropylene (PP) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Chassis, Panel, Through Hole | Chassis, Panel, Through Hole |
| Number of Circuits | 11 | 1 - 24 |
| Number of Rows | 1 | 1 |
| Number of Wire Entries | 11 | 2 - 21 |
| Number of Wire Entries | - | 1 |
| Operating Temperature | 105 C | 105 C |
| Pitch [x] | 8.26 mm | 8.26 mm |
| Pitch [x] | 0.325 in | 0.325 in |
| Terminal Block Type | Barrier Block | Barrier Block |
| Terminal Screw Material | Steel | Steel |
| Top Termination | Screws | Screws |
| Voltage Rating | 300 VDC | 300 VDC |
| Wire Gauge [Max] | 22 AWG | 22 AWG |
| Wire Gauge [Min] | 14 AWG | 14 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.17 | |
| 10 | $ 5.65 | |||
| 30 | $ 5.38 | |||
325010 Series
CONN BARRIER STRIP 5CIRC 0.325"
| Part | Voltage Rating | Operating Temperature | Barrier Type | Number of Rows | Current Rating (Amps) | Features | Terminal Block Type | Number of Circuits | Material Flammability Rating | Number of Wire Entries | Wire Gauge [Min] | Wire Gauge [Max] | Bottom Termination | Material - Insulation | Pitch [x] | Pitch [x] | Mounting Type | Terminal Screw Material | Top Termination | Number of Wire Entries [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Curtis Industries 325010-05-0 | 300 VDC | 105 C | 2 Wall (Dual) | 1 | 15 A | Flange | Barrier Block | 5 | UL94 V-0 | 5 | 14 AWG | 22 AWG | PC Pin | Polypropylene (PP) | 8.26 mm | 0.325 in | Chassis, Panel, Through Hole | Steel | Screws | |
Curtis Industries 325010-07-0 | 300 VDC | 105 C | 2 Wall (Dual) | 1 | 15 A | Flange | Barrier Block | 7 | UL94 V-0 | 7 | 14 AWG | 22 AWG | PC Pin | Polypropylene (PP) | 8.26 mm | 0.325 in | Chassis, Panel, Through Hole | Steel | Screws | |
Curtis Industries 325010-03-0 | 300 VDC | 105 C | 2 Wall (Dual) | 1 | 15 A | Flange | Barrier Block | 3 | UL94 V-0 | 3 | 14 AWG | 22 AWG | PC Pin | Polypropylene (PP) | 8.26 mm | 0.325 in | Chassis, Panel, Through Hole | Steel | Screws | |
Curtis Industries 325010-21-0 | 300 VDC | 105 C | 2 Wall (Dual) | 1 | 15 A | Flange | Barrier Block | 21 | UL94 V-0 | 21 | 14 AWG | 22 AWG | PC Pin | Polypropylene (PP) | 8.26 mm | 0.325 in | Chassis, Panel, Through Hole | Steel | Screws | |
Curtis Industries 325010-09-0 | 300 VDC | 105 C | 2 Wall (Dual) | 1 | 15 A | Flange | Barrier Block | UL94 V-0 | 9 | 14 AWG | 22 AWG | PC Pin | Polypropylene (PP) | 8.26 mm | 0.325 in | Chassis, Panel, Through Hole | Steel | Screws | ||
Curtis Industries 325010-16-0 | 300 VDC | 105 C | 2 Wall (Dual) | 1 | 15 A | Flange | Barrier Block | 16 | UL94 V-0 | 16 | 14 AWG | 22 AWG | PC Pin | Polypropylene (PP) | 8.26 mm | 0.325 in | Chassis, Panel, Through Hole | Steel | Screws | |
Curtis Industries 325010-12-0 | 300 VDC | 105 C | 2 Wall (Dual) | 1 | 15 A | Flange | Barrier Block | 12 | UL94 V-0 | 12 | 14 AWG | 22 AWG | PC Pin | Polypropylene (PP) | 8.26 mm | 0.325 in | Chassis, Panel, Through Hole | Steel | Screws | |
Curtis Industries 325010-02-0 | 300 VDC | 105 C | 2 Wall (Dual) | 1 | 15 A | Flange | Barrier Block | 2 | UL94 V-0 | 2 | 14 AWG | 22 AWG | PC Pin | Polypropylene (PP) | 8.26 mm | 0.325 in | Chassis, Panel, Through Hole | Steel | Screws | |
Curtis Industries 325010-11-0 | 300 VDC | 105 C | 2 Wall (Dual) | 1 | 15 A | Flange | Barrier Block | 11 | UL94 V-0 | 11 | 14 AWG | 22 AWG | PC Pin | Polypropylene (PP) | 8.26 mm | 0.325 in | Chassis, Panel, Through Hole | Steel | Screws | |
Curtis Industries 325010-12-0 |
Description
General part information
325010 Series
11 Circuit 0.325" (8.26mm) Barrier Block Connector Screws
