627-8W8-624-7TB

Active

EDAC Inc.

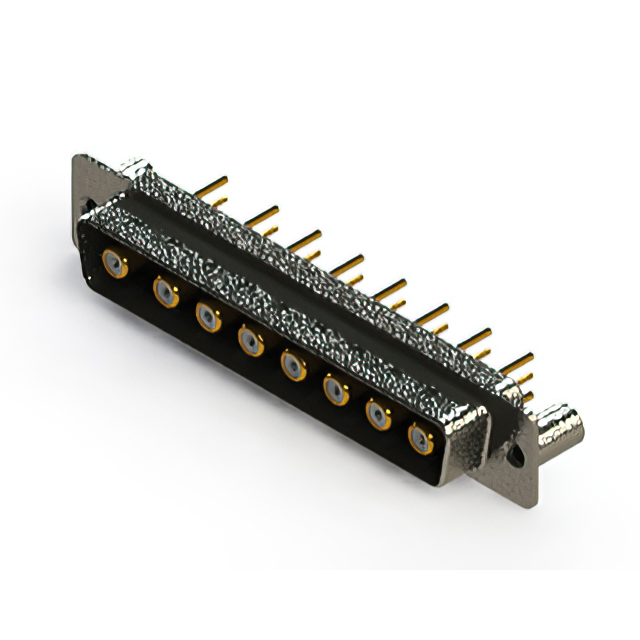

CONN D-SUB PLUG 8P PNL MNT SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

627-8W8-624-7TB

Active

EDAC Inc.

CONN D-SUB PLUG 8P PNL MNT SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	627-8W8-624-7TB

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Coax
Dielectric Material	Polyester Thermoplastic
Features	Grounding Indents, Shielded
Flange Feature	Board Side (M3)
Material Flammability Rating	UL94 V-0
Number of Positions	8
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	8W8
Shell Size, Connector Layout	4
Termination	Solder
Voltage Rating	125 VDC

627-8W8 Series

...

Part	Material Flammability Rating	Contact Finish	Shell Material, Finish	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Color	Mounting Type	Contact Finish Thickness	Contact Type	Number of Positions	Contact Material	Voltage Rating	Number of Rows	Flange Feature	Connector Type	Connector Style	Features	Shell Size, Connector Layout	Shell Size, Connector Layout	Termination	Current Rating (Amps)	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. 627-8W8-222-5NA	UL94 V-0	Gold	Nickel Plated Steel	-55 °C	125 °C	Polyester Thermoplastic	Black	Free Hanging (In-Line)	Flash	Coax	8	Copper Alloy	125 VDC	1	Board Side (M3)	Male Pins Plug	Combo D-Sub	Grounding Indents Shielded	8W8	4
EDAC Inc. 627-8W8-222-7N1	UL94 V-0	Gold	Nickel Plated Steel	-55 °C	125 °C	Polyester Thermoplastic	Black	Free Hanging (In-Line)	Flash	Coax	8	Copper Alloy	125 VDC	1	Housing/Shell (Unthreaded)	Male Pins Plug	Combo D-Sub	Grounding Indents Shielded	8W8	4
EDAC Inc. 627-8W8-224-3TE	UL94 V-0	Gold		-55 °C	125 °C	Polyester Thermoplastic	Black	Panel Mount Through Hole	Flash	Power	8	Copper Alloy	125 VDC	1	M3	Male Pins Plug	Combo D-Sub	Board Lock Grounding Indents Shielded	8W8	4	Solder	30 A
EDAC Inc. 627-8W8-624-7N3	UL94 V-0	Gold	Nickel Plated Steel	-55 °C	125 °C	Polyester Thermoplastic	Black			Coax	8	Copper Alloy	125 VDC	1	4-40 Board Side	Male Pins Plug	Combo D-Sub	Grounding Indents Shielded	8W8	4	Solder		0.76 Ám	30 Áin
EDAC Inc. 627-8W8-624-2TD	UL94 V-0	Gold		-55 °C	125 °C	Polyester Thermoplastic	Black	Through Hole		Power	8	Copper Alloy	125 VDC	1	Board Side (M3)	Male Pins Plug	Combo D-Sub	Board Lock Grounding Indents Shielded	8W8	4	Solder	20 A	0.76 Ám	30 Áin
EDAC Inc. 627-8W8-624-7TB	UL94 V-0	Gold		-55 °C	125 °C	Polyester Thermoplastic	Black			Coax	8	Copper Alloy	125 VDC	1	Board Side (M3)	Male Pins Plug	Combo D-Sub	Grounding Indents Shielded	8W8	4	Solder		0.76 Ám	30 Áin
EDAC Inc. 627-8W8-222-1N2	UL94 V-0	Gold	Nickel Plated Steel	-55 °C	125 °C	Polyester Thermoplastic	Black	Free Hanging (In-Line)	Flash	Power	8	Copper Alloy	125 VDC	1	4-40 Board Side	Male Pins Plug	Combo D-Sub	Grounding Indents Shielded	8W8	4		10 A
EDAC Inc. 627-8W8-224-2T2	UL94 V-0	Gold		-55 °C	125 °C	Polyester Thermoplastic	Black		Flash	Power	8	Copper Alloy	125 VDC	1	4-40 Board Side	Male Pins Plug	Combo D-Sub	Grounding Indents Shielded	8W8	4	Solder	20 A
EDAC Inc. 627-8W8-624-7T6	UL94 V-0	Gold		-55 °C	125 °C	Polyester Thermoplastic	Black	Panel Mount Through Hole		Coax	8	Copper Alloy	125 VDC	1	4-40	Male Pins Plug	Combo D-Sub	Board Lock Grounding Indents Shielded	8W8	4	Solder		0.76 Ám	30 Áin
EDAC Inc. 627-8W8-622-3T1	UL94 V-0	Gold		-55 °C	125 °C	Polyester Thermoplastic	Black	Free Hanging (In-Line)		Power	8	Copper Alloy	125 VDC	1	Housing/Shell (Unthreaded)	Male Pins Plug	Combo D-Sub	Grounding Indents Shielded	8W8	4		30 A	0.76 Ám	30 Áin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	50	$ 35.42

Description

General part information

627-8W8 Series

8 (Coax) Position D-Sub, Combo Plug, Male Pins Connector
