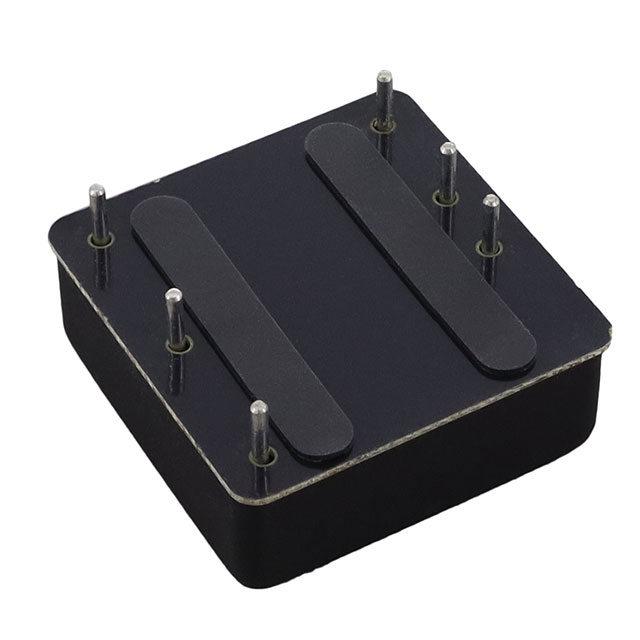

PKE5311PI

Active

Flex Power Modules

DC DC CONVERTER 5V 30W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PKE5311PI

Active

Flex Power Modules

DC DC CONVERTER 5V 30W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PKE5311PI

Applications	ITE (Commercial)
Approval Agency	CB, UL, IEC, TUV, CSA
Control Features	Active Low, Enable
Current - Output (Max) [Max]	6 A
Efficiency	91 %
Features	Remote On/Off, Adjustable Output
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Package / Case	6-DIP Module
Power (Watts)	30 W
Size / Dimension [x]	25.4 mm
Size / Dimension [x]	1 in
Size / Dimension [y]	25.4 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [z]	0.43 "
Size / Dimension [z]	10.8 mm
Standard Number	62368-1
Type	Isolated Module
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	18 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	5 V

PKE531 Series

Part	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Standard Number	Number of Outputs	Power (Watts)	Efficiency	Package / Case	Voltage - Output 1	Features	Control Features	Voltage - Isolation	Mounting Type	Applications	Voltage - Input (Max) [Max]	Approval Agency	Current - Output (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Min) [Min]	Type
Flex Power Modules PKE5316ZPI	25.4 mm	1 in	25.4 mm	0.43 "	10.8 mm	25.4 mm	62368-1	1	30 W	92 %	6-DIP Module	24 V	Adjustable Output Remote On/Off	Active Low Enable	1.5 kV	Through Hole	ITE (Commercial)	75 V	CB CSA IEC TUV UL	1.25 A	-40 °C	115 °C	18 V	Isolated Module
Flex Power Modules PKE5313PI	25.4 mm	1 in	25.4 mm	0.43 "	10.8 mm	25.4 mm	62368-1	1	30 W	91 %	6-DIP Module	12 V	Adjustable Output Remote On/Off	Active Low Enable	1.5 kV	Through Hole	ITE (Commercial)	75 V	CB CSA IEC TUV UL	2.5 A	-40 °C	115 °C	18 V	Isolated Module
Flex Power Modules PKE5316HPI	25.4 mm	1 in	25.4 mm	0.43 "	10.8 mm	25.4 mm	62368-1	1	25 W	90 %	6-DIP Module	54 V	Adjustable Output Remote On/Off	Active Low Enable	1.5 kV	Through Hole	ITE (Commercial)	75 V	CB CSA IEC TUV UL	463 mA	-40 °C	115 °C	18 V	Isolated Module
Flex Power Modules PKE5311PI	25.4 mm	1 in	25.4 mm	0.43 "	10.8 mm	25.4 mm	62368-1	1	30 W	91 %	6-DIP Module	5 V	Adjustable Output Remote On/Off	Active Low Enable	1.5 kV	Through Hole	ITE (Commercial)	75 V	CB CSA IEC TUV UL	6 A	-40 °C	115 °C	18 V	Isolated Module
Flex Power Modules PKE5316JPI	25.4 mm	1 in	25.4 mm	0.43 "	10.8 mm	25.4 mm	62368-1	1	30 W	91 %	6-DIP Module	48 V	Adjustable Output Remote On/Off	Active Low Enable	1.5 kV	Through Hole	ITE (Commercial)	75 V	CB CSA IEC TUV UL	625 mA	-40 °C	115 °C	18 V	Isolated Module
Flex Power Modules PKE5315PI	25.4 mm	1 in	25.4 mm	0.43 "	10.8 mm	25.4 mm	62368-1	1	30 W	91 %	6-DIP Module	15 V	Adjustable Output Remote On/Off	Active Low Enable	1.5 kV	Through Hole	ITE (Commercial)	75 V	CB CSA IEC TUV UL	2 A	-40 °C	115 °C	18 V	Isolated Module

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 41.49
		5	$ 41.16
		10	$ 40.84
		25	$ 39.54
		50	$ 37.60
		100	$ 35.01
		250	$ 34.49

Description

General part information

PKE531 Series

Isolated Module DC DC Converter 1 Output 5V 6A 18V - 75V Input
