9221 010U500

Obsolete

Belden Inc.

75 OHM MINIATURE COAX

Search across all available documentation for this part.

Obsolete

Belden Inc.

75 OHM MINIATURE COAX

Technical Specifications

Parameters and characteristics for this part

Specification	9221 010U500

Cable Type	Coaxial
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	38 AWG
Dielectric Diameter [diameter]	1.47 mm
Dielectric Diameter [diameter]	0.058 in
Impedance	75 Ohms
Jacket (Insulation) Diameter [diameter]	2.46 mm
Jacket (Insulation) Diameter [diameter]	0.097 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Length	152.4 m
Length	6000 in
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-30 ░C
Shield Coverage	90 %
Shield Material	Copper, Tinned
Shield Type	Braid
Usage	Video
VoP, Velocity of Propagation	78
Wire Gauge	30 AWG

Part	Shield Coverage	Length	Length	Conductor Strand [custom]	Conductor Strand [custom]	VoP, Velocity of Propagation	Shield Material	Impedance	Jacket Color	Shield Type	Usage	Wire Gauge	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Cable Type	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Material
Belden Inc. 9221 010U500	90 %	152.4 m	6000 in	7	38 AWG	78	Copper Tinned	75 Ohms	Black	Braid	Video	30 AWG	Poly-Vinyl Chloride (PVC)	2.46 mm	0.097 in	1.47 mm	0.058 in	Coaxial	-30 ░C	75 ░C	Copper Tinned

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

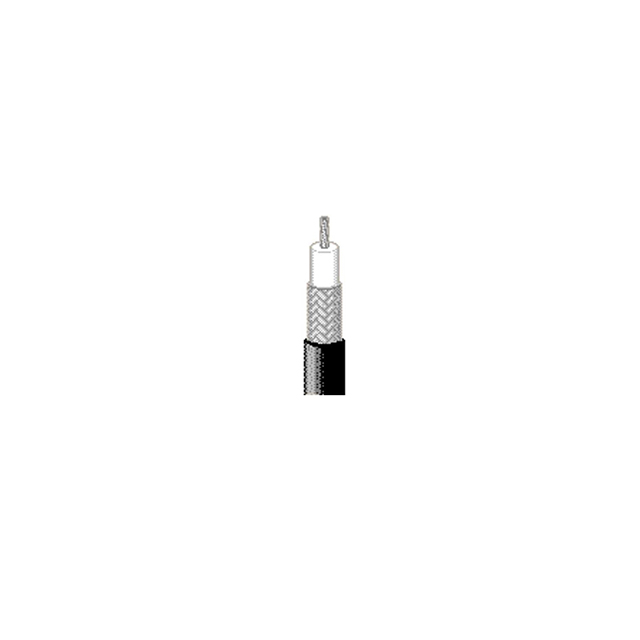

Coaxial Cable 30 AWG 500.0' (152.40m) 75 Ohms
