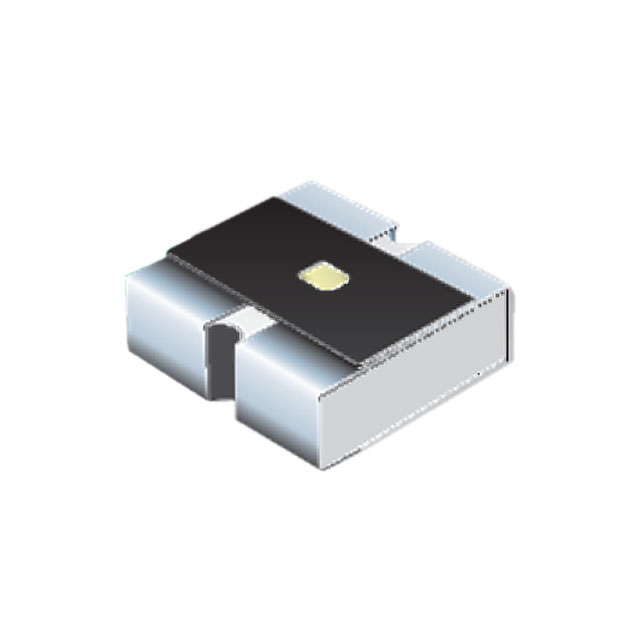

CAY06-150J2AS

Active

Bourns Inc.

RES ARR 2 RES 15 OHM 0302

Search across all available documentation for this part.

Active

Bourns Inc.

RES ARR 2 RES 15 OHM 0302

Technical Specifications

Parameters and characteristics for this part

Part	Package / Case	Circuit Type	Temperature Coefficient	Mounting Type	Resistance (Ohms)	Operating Temperature [Min]	Operating Temperature [Max]	Power Per Element	Tolerance	Number of Resistors	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Number of Pins
Bourns Inc. CAY06-270J2AS	0302 (0805 Metric)	Isolated	200 ppm/°C	Surface Mount	27 Ohms	-55 °C	125 °C	31 mW	5 %	2	0.016 in	0.4 mm	0.6 mm	0.033 "	0.85 mm	0.024 "	4
Bourns Inc. CAY06-150J2AS	0302 (0805 Metric)	Isolated	200 ppm/°C	Surface Mount	15 Ohms	-55 °C	125 °C	31 mW	5 %	2	0.016 in	0.4 mm	0.6 mm	0.033 "	0.85 mm	0.024 "	4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.47
	Digi-Reel®	1	$ 0.47
	Tape & Reel (TR)	50000	$ 0.05

General part information

15 Ohm ±5% 31mW Power Per Element Isolated 2 Resistor Network/Array ±200ppm/°C 0302 (0805 Metric), Convex, Long Side Terminals
