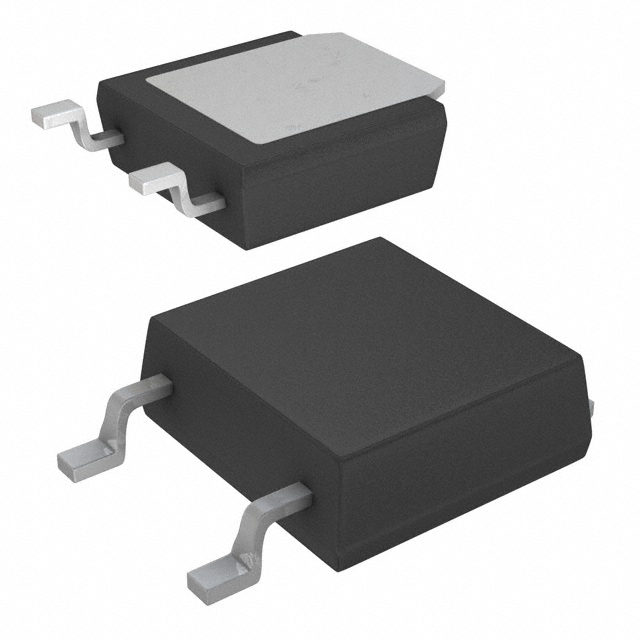

PWR163S-25-5602F

Active

Bourns Inc.

RES SMD 56K OHM 1% 25W DPAK

Description Specifications Series Pricing CAD Documents

Description

General part information

PWR163S Series

56 kOhms ±1% 25W Chip Resistor Non-Standard DPAK Automotive AEC-Q200, Current Sense, Pulse Withstanding Thick Film

Technical Specifications

Parameters and characteristics for this part

Specification	PWR163S-25-5602F

Composition	Thick Film
Features	Current Sense, Pulse Withstanding, Automotive AEC-Q200
Height - Seated (Max)	0.125 in
Number of Terminations	2
Operating Temperature (Max)	155 °C
Operating Temperature (Min)	-55 °C
Package / Case	Non-Standard DPAK
Package Name	DPAK Style
Power (Watts)	25 W
Ratings	AEC-Q200
Resistance	56 kOhm
Size / Dimension Length	0.32 in
Size / Dimension Width	0.324 in
Temperature Coefficient	100 ppm/°C
Tolerance	1 %

PWR163S Series

...

Part	Tolerance	Package / Case	Number of Terminations	Resistance	Features	Power (Watts)	Composition	Operating Temperature (Max)	Operating Temperature (Min)	Ratings	Package Name	Temperature Coefficient	Height - Seated (Max)	Size / Dimension Width	Size / Dimension Length
Bourns Inc. PWR163S-25-5602F	1 %	Non-Standard DPAK	2	56 kOhm	Automotive AEC-Q200 Current Sense Pulse Withstanding	25 W	Thick Film	155 °C	-55 °C	AEC-Q200	DPAK Style	100 ppm/°C	0.125 in	0.324 in	0.32 in
Bourns Inc. PWR163S-25-R033J	5 %	Non-Standard DPAK	2	33 mOhms	Automotive AEC-Q200 Current Sense Pulse Withstanding	25 W	Thick Film	155 °C	-55 °C	AEC-Q200	DPAK Style	100 ppm/°C	0.125 in	0.324 in	0.32 in
Bourns Inc. PWR163S-25-5R00F	1 %	Non-Standard DPAK	2	5 Ohm	Automotive AEC-Q200 Current Sense Pulse Withstanding	25 W	Thick Film	155 °C	-55 °C	AEC-Q200	DPAK Style	100 ppm/°C	0.125 in	0.324 in	0.32 in
Bourns Inc. PWR163S-25-50R0F	1 %	Non-Standard DPAK	2	50 Ohms	Automotive AEC-Q200 Current Sense Pulse Withstanding	25 W	Thick Film	155 °C	-55 °C	AEC-Q200	DPAK Style	100 ppm/°C	0.125 in	0.324 in	0.32 in
Bourns Inc. PWR163S-25-1R50J	5 %	Non-Standard DPAK	2	1.5 Ohm	Automotive AEC-Q200 Current Sense Pulse Withstanding	25 W	Thick Film	155 °C	-55 °C	AEC-Q200	DPAK Style	100 ppm/°C	0.125 in	0.324 in	0.32 in
Bourns Inc. PWR163S-25-4R70J	5 %	Non-Standard DPAK	2	4.7 Ohm	Automotive AEC-Q200 Current Sense Pulse Withstanding	25 W	Thick Film	155 °C	-55 °C	AEC-Q200	DPAK Style	100 ppm/°C	0.125 in	0.324 in	0.32 in
Bourns Inc. PWR163S-25-7500FE	1 %	Non-Standard DPAK	2	750 Ohm	Automotive AEC-Q200 Current Sense Pulse Withstanding	25 W	Thick Film	155 °C	-55 °C	AEC-Q200	DPAK Style	100 ppm/°C	0.125 in	0.324 in	0.32 in
Bourns Inc. PWR163S-25-1802FE	1 %	Non-Standard DPAK	2	18 kOhm	Automotive AEC-Q200 Current Sense Pulse Withstanding	25 W	Thick Film	155 °C	-55 °C	AEC-Q200	DPAK Style	100 ppm/°C	0.125 in	0.324 in	0.32 in
Bourns Inc. PWR163S-25-5R00FE	1 %	Non-Standard DPAK	2	5 Ohm	Automotive AEC-Q200 Current Sense Pulse Withstanding	25 W	Thick Film	155 °C	-55 °C	AEC-Q200	DPAK Style	100 ppm/°C	0.125 in	0.324 in	0.32 in
Bourns Inc. PWR163S-25-R040JE	5 %	Non-Standard DPAK	2	40 mOhms	Automotive AEC-Q200 Current Sense Pulse Withstanding	25 W	Thick Film	155 °C	-55 °C	AEC-Q200	DPAK Style	100 ppm/°C	0.125 in	0.324 in	0.32 in
