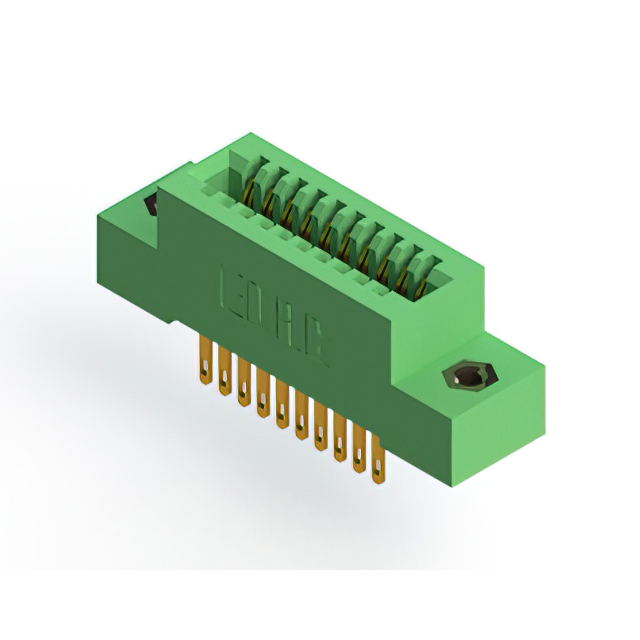

325-020-500-208

Active

EDAC Inc.

CONN EDGE DUAL FMALE 20POS 0.100

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

325-020-500-208

Active

EDAC Inc.

CONN EDGE DUAL FMALE 20POS 0.100

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	325-020-500-208

Card Thickness	3.18 mm
Card Thickness	0.125 in
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Flush Mount, Threaded Insert, 4-40, Top Opening
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole
Number of Positions	20
Number of Positions/Bay/Row [custom]	10
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Solder Eyelet(s)
Termination Rows	2

325-020 Series

Part	Number of Positions	Pitch [x]	Pitch [x]	Gender	Number of Rows	Contact Material	Card Thickness	Card Thickness	Termination	Read Out	Number of Positions/Bay/Row [custom]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Card Type	Contact Finish	Termination Rows	Contact Type	Color	Contact Finish Thickness	Contact Finish Thickness	Material - Insulation	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]
EDAC Inc. 325-020-540-201	20	2.54 mm	0.1 in	Female	2	Copper Alloy	3.18 mm	0.125 in	Wire Wrap	Dual	10	Through Hole	125 °C	-65 ░C	Non Specified - Dual Edge	Gold	2	Cantilever	Green	10 Áin	0.25 Ám	Diallyl Phthalate (DAP)
EDAC Inc. 325-020-520-209	20	2.54 mm	0.1 in	Female	2	Copper Alloy	3.18 mm	0.125 in	Solder	Dual	10	Through Hole	125 °C	-65 ░C	Non Specified - Dual Edge	Gold	2	Cantilever	Green	10 Áin	0.25 Ám	Diallyl Phthalate (DAP)	0.16 in	Flush Mount Top Opening Unthreaded	4.06 mm
EDAC Inc. 325-020-520-109	20	2.54 mm	0.1 in	Female	1	Copper Alloy	3.18 mm	0.125 in	Solder	Single		Through Hole	125 °C	-65 ░C	Non Specified - Single Edge	Gold	1	Cantilever	Green	10 Áin	0.25 Ám	Diallyl Phthalate (DAP)	0.16 in	Flush Mount Top Opening Unthreaded	4.06 mm	20	20	20
EDAC Inc. 325-020-540-209	20	2.54 mm	0.1 in	Female	2	Copper Alloy	3.18 mm	0.125 in	Wire Wrap	Dual	10	Through Hole	125 °C	-65 ░C	Non Specified - Dual Edge	Gold	2	Cantilever	Green	10 Áin	0.25 Ám	Diallyl Phthalate (DAP)	0.16 in	Flush Mount Top Opening Unthreaded	4.06 mm
EDAC Inc. 325-020-500-209	20	2.54 mm	0.1 in	Female	2	Copper Alloy	3.18 mm	0.125 in	Solder Eyelet(s)	Dual	10	Through Hole	125 °C	-65 ░C	Non Specified - Dual Edge	Gold	2	Cantilever	Green	10 Áin	0.25 Ám	Diallyl Phthalate (DAP)	0.16 in	Flush Mount Top Opening Unthreaded	4.06 mm
EDAC Inc. 325-020-500-208	20	2.54 mm	0.1 in	Female	2	Copper Alloy	3.18 mm	0.125 in	Solder Eyelet(s)	Dual	10	Through Hole	125 °C	-65 ░C	Non Specified - Dual Edge	Gold	2	Cantilever	Green	10 Áin	0.25 Ám	Diallyl Phthalate (DAP)		4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 325-020-500-207	20	2.54 mm	0.1 in	Female	2	Copper Alloy	3.18 mm	0.125 in	Solder Eyelet(s)	Dual	10	Through Hole	125 °C	-65 ░C	Non Specified - Dual Edge	Gold	2	Cantilever	Green	10 Áin	0.25 Ám	Diallyl Phthalate (DAP)		Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 325-020-520-101	20	2.54 mm	0.1 in	Female	1	Copper Alloy	3.18 mm	0.125 in	Solder	Single		Through Hole	125 °C	-65 ░C	Non Specified - Single Edge	Gold	1	Cantilever	Green	10 Áin	0.25 Ám	Diallyl Phthalate (DAP)				20	20	20
EDAC Inc. 325-020-520-208	20	2.54 mm	0.1 in	Female	2	Copper Alloy	3.18 mm	0.125 in	Solder	Dual	10	Through Hole	125 °C	-65 ░C	Non Specified - Dual Edge	Gold	2	Cantilever	Green	10 Áin	0.25 Ám	Diallyl Phthalate (DAP)		4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 325-020-540-208	20	2.54 mm	0.1 in	Female	2	Copper Alloy	3.18 mm	0.125 in	Wire Wrap	Dual	10	Through Hole	125 °C	-65 ░C	Non Specified - Dual Edge	Gold	2	Cantilever	Green	10 Áin	0.25 Ám	Diallyl Phthalate (DAP)		4-40 Flush Mount Threaded Insert Top Opening

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 15.25

Description

General part information

325-020 Series

20 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
