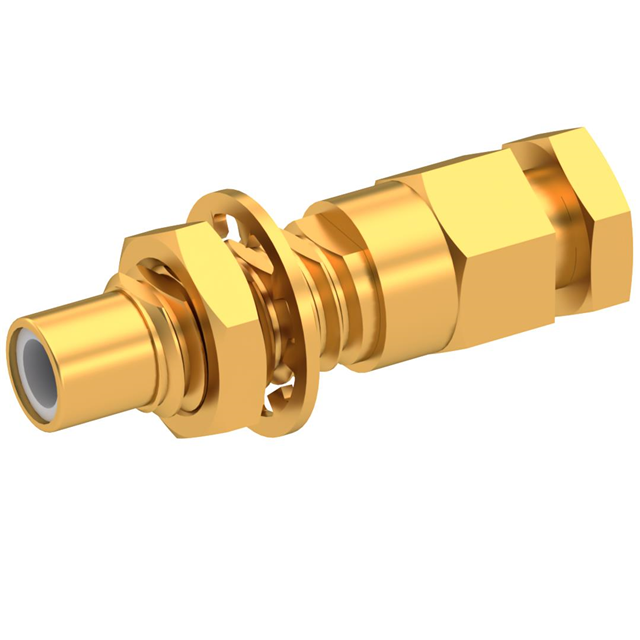

1003-1541-010

Active

Radiall USA, Inc.

SMC / STRAIGHT JACK MALE SOLDER

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMC / STRAIGHT JACK MALE SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	1003-1541-010

Body Finish	Gold
Body Material	Brass
Cable Group	RG-405
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMC
Connector Type	Male Pin, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	10 GHz
Housing Color	Gold
Impedance	50 Ohms
Insertion Loss	0.25 dB
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Clamp

SMC / STRAIGHT JACK MALE SOLDER

Part	Insertion Loss	Mating Cycles	Dielectric Material	Housing Color	Cable Group	Connector Type	Contact Termination	Center Contact Plating	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Max [Max]	Mounting Feature	Center Contact Material	Connector Style	Impedance	Body Material	Shield Termination	Body Finish	Number of Ports
Radiall USA, Inc. 1003-1541-010	0.25 dB	500	Polytetrafluoroethylene (PTFE)	Gold	RG-405	Jack, Male Pin	Solder	Gold	-65 ░C	165 °C	10 GHz	Bulkhead - Front Side Nut	Brass	SMC	50 Ohms	Brass	Clamp	Gold	1
