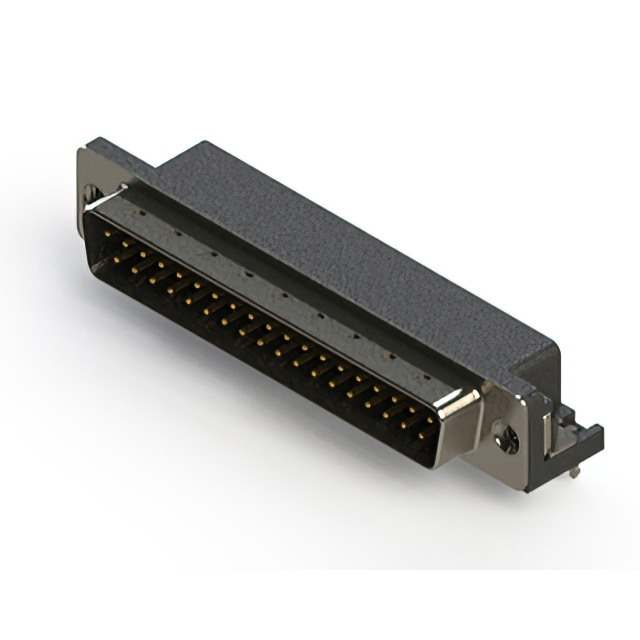

621-037-360-532

Active

EDAC Inc.

STANDARD D-SUN CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

621-037-360-532

Active

EDAC Inc.

STANDARD D-SUN CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	621-037-360-532

Backset Spacing	8.08 mm
Backset Spacing	0.318 "
Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polyester Thermoplastic
Features	Board Lock, Mounting Brackets, Grounding Indents, Shielded
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions	37
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	4 (DC, C)
Termination	Solder

621-037 Series

...

Part	Termination	Number of Positions	Contact Type	Connector Style	Connector Type	Shell Size, Connector Layout	Shell Material, Finish	Contact Finish Thickness	Contact Finish Thickness	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Color	Backset Spacing	Backset Spacing	Features	Mounting Type	Number of Rows	Contact Material	Contact Finish	Dielectric Material	Current Rating (Amps)	Flange Feature	Contact Finish Thickness
EDAC Inc. 621-037-660-545	Solder	37	Signal	D-Sub	Male Pins Plug	4 (DC C)	Nickel Plated Steel	0.76 Ám	30 Áin	UL94 V-0	-55 °C	125 °C	Black	8.08 mm	0.318 "	Board Lock Grounding Indents Mounting Brackets Shielded	Board Edge Right Angle Through Hole	2	Copper Alloy	Gold	Polyester Thermoplastic	3 A	Housing/Shell (M3)
EDAC Inc. 621-037-260-512	Solder	37	Signal	D-Sub	Male Pins Plug	4 (DC C)	Nickel Plated Steel			UL94 V-0	-55 °C	125 °C	Black	8.08 mm	0.318 "	Grounding Indents Mounting Brackets Shielded	Board Edge Right Angle Through Hole	2	Copper Alloy	Gold	Polyester Thermoplastic	3 A	Housing/Shell (4-40)	Flash
EDAC Inc. 621-037-360-532	Solder	37	Signal	D-Sub	Male Pins Plug	4 (DC C)	Nickel Plated Steel	0.38 µm	15 µin	UL94 V-0	-55 °C	125 °C	Black	8.08 mm	0.318 "	Board Lock Grounding Indents Mounting Brackets Shielded	Board Edge Right Angle Through Hole	2	Copper Alloy	Gold	Polyester Thermoplastic	3 A	Housing/Shell (4-40)
EDAC Inc. 621-037-368-051	Solder	37	Signal	D-Sub	Male Pins Plug	4 (DC C)	Nickel Plated Steel	0.38 µm	15 µin	UL94 V-0	-55 °C	85 °C	Black	8.08 mm	0.318 "	Filter Grounding Indents Mounting Brackets Shielded	Board Edge Right Angle Through Hole	2	Copper Alloy	Gold	Polyester Thermoplastic	3 A	Housing/Shell (Unthreaded)
EDAC Inc. 621-037-260-041	Solder	37	Signal	D-Sub	Male Pins Plug	4 (DC C)	Nickel Plated Steel			UL94 V-0	-55 °C	85 °C	Black	8.08 mm	0.318 "	Board Lock Grounding Indents Mounting Brackets Shielded	Board Edge Right Angle Through Hole	2	Copper Alloy	Gold	Polyester Thermoplastic	3 A	Housing/Shell (Unthreaded)	Flash
EDAC Inc. 621-037-668-011	Solder	37	Signal	D-Sub	Male Pins Plug	4 (DC C)	Nickel Plated Steel	0.76 Ám	30 Áin	UL94 V-0	-55 °C	85 °C	Black	8.08 mm	0.318 "	Filter Grounding Indents Mounting Brackets Shielded	Board Edge Right Angle Through Hole	2	Copper Alloy	Gold	Polyester Thermoplastic	3 A	Housing/Shell (Unthreaded)
EDAC Inc. 621-037-368-515	Solder	37	Signal	D-Sub	Male Pins Plug	4 (DC C)	Nickel Plated Steel	0.38 µm	15 µin	UL94 V-0	-55 °C	125 °C	Black	8.08 mm	0.318 "	Filter Grounding Indents Mounting Brackets Shielded	Board Edge Right Angle Through Hole	2	Copper Alloy	Gold	Polyester Thermoplastic	3 A	Housing/Shell (M3)
EDAC Inc. 621-037-260-053	Solder	37	Signal	D-Sub	Male Pins Plug	4 (DC C)	Nickel Plated Steel			UL94 V-0	-55 °C	85 °C	Black	8.08 mm	0.318 "	Grounding Indents Mounting Brackets Shielded	Board Edge Right Angle Through Hole	2	Copper Alloy	Gold	Polyester Thermoplastic	3 A	Female Screwlock (4-40) Mating Side	Flash
EDAC Inc. 621-037-260-051	Solder	37	Signal	D-Sub	Male Pins Plug	4 (DC C)	Nickel Plated Steel			UL94 V-0	-55 °C	85 °C	Black	8.08 mm	0.318 "	Grounding Indents Mounting Brackets Shielded	Board Edge Right Angle Through Hole	2	Copper Alloy	Gold	Polyester Thermoplastic	3 A	Housing/Shell (Unthreaded)	Flash
EDAC Inc. 621-037-668-550	Solder	37	Signal	D-Sub	Male Pins Plug	4 (DC C)	Nickel Plated Steel	0.76 Ám	30 Áin	UL94 V-0	-55 °C	125 °C	Black	8.08 mm	0.318 "	Filter Grounding Indents Mounting Brackets Shielded	Board Edge Right Angle Through Hole	2	Copper Alloy	Gold	Polyester Thermoplastic	3 A	4-40

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	200	$ 5.67
Newark	Each	100	$ 5.68
		250	$ 5.54
		500	$ 5.34

Description

General part information

621-037 Series

37 Position D-Sub Plug, Male Pins Connector
