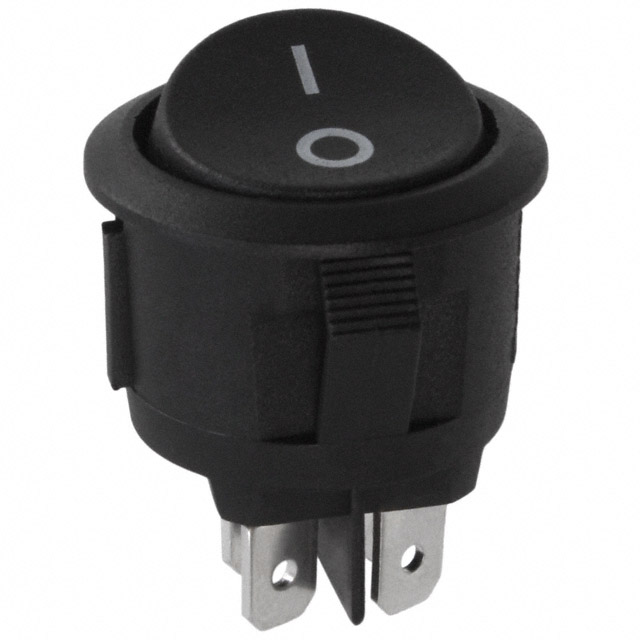

RRA12C1121

Active

E-Switch

SWITCH ROCKER DPST 15A 125V

Search across all available documentation for this part.

Active

E-Switch

SWITCH ROCKER DPST 15A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	RRA12C1121

Actuator Marking	O -
Actuator Type	Round
Approval Agency	UL, cUL
Circuit	DPST
Color - Actuator/Cap	Black
Current Rating (Amps)	15 A
Electrical Life	10000 Cycles
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	22 mm
Switch Function	On-Off
Termination Style	Quick Connect - 0.187" (4.7mm)
Voltage Rating - AC	125 V

Part	Actuator Type	Actuator Marking	Electrical Life	Circuit	Mounting Type	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Voltage Rating - AC	Switch Function	Color - Actuator/Cap	Panel Cutout Dimensions [diameter]	Approval Agency	Illumination Type, Color	Illumination Voltage (Nominal)
E-Switch RRA12C1921	Round	O -	10000 Cycles	DPST	Panel Mount Snap-In	Quick Connect - 0.187" (4.7mm)	-20 C	105 ░C	15 A	125 V	On-Off	Red	22 mm	cUL UL
E-Switch RRA12C1000-136	Round - Illuminated	No Marking	10000 Cycles	DPST	Panel Mount Snap-In	Quick Connect - 0.187" (4.7mm)	-20 C	105 ░C	15 A	125 V	On-Off	Green	22 mm	cUL UL	Green Neon	125 VAC
E-Switch RRA12C1100	Round	No Marking	10000 Cycles	DPST	Panel Mount Snap-In	Quick Connect - 0.187" (4.7mm)	-20 C	105 ░C	15 A	125 V	On-Off	Black	22 mm	cUL UL
E-Switch RRA12C1121	Round	O -	10000 Cycles	DPST	Panel Mount Snap-In	Quick Connect - 0.187" (4.7mm)	-20 C	105 ░C	15 A	125 V	On-Off	Black	22 mm	cUL UL
E-Switch RRA12C1000-146	Round - Illuminated	No Marking	10000 Cycles	DPST	Panel Mount Snap-In	Quick Connect - 0.187" (4.7mm)	-20 C	105 ░C	15 A	125 V	On-Off	Blue	22 mm	cUL UL	Blue Neon	125 VAC
E-Switch RRA12C1000-145	Round - Illuminated	No Marking	10000 Cycles	DPST	Panel Mount Snap-In	Quick Connect - 0.187" (4.7mm)	-20 C	105 ░C	15 A	125 V	On-Off	Blue	22 mm	cUL UL	Blue Incandescent	24 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch DPST 15A (AC) 125 V Panel Mount, Snap-In
