CV150 Series

Part	Maximum AC Volts	Energy	Capacitance	Package Diameter	Package Name	Varistor Voltage (Max)	Current - Surge	Varistor Voltage (Typ)	Maximum DC Voltage	Number of Circuits	Varistor Voltage (Min)	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type
Bourns Inc. CV150K7BL1	150 V	18 J	280 pF	7 mm	Disc	264 V	1200 A	240 V	200 V	1	216 V	85 °C	-40 °C	Through Hole
Bourns Inc. CV150K7RL1	150 V	18 J	280 pF	7 mm	Disc	264 V	1200 A	240 V	200 V	1	216 V	85 °C	-40 °C	Through Hole

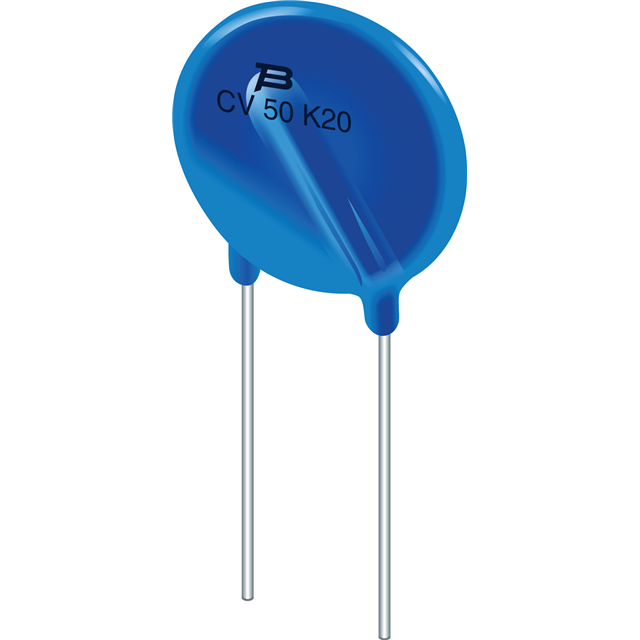

Bourns Inc. CV150K5BL1	150 V	9 J	130 pF	5 mm	Disc	264 V	400 A	240 V	200 V	1	216 V	85 °C	-40 °C	Through Hole
Bourns Inc. CV150K14BL1	150 V	81 J	900 pF	14 mm	Disc	264 V	4.5 kA	240 V	200 V	1	216 V	85 °C	-40 °C	Through Hole
Bourns Inc. CV150K20BL1	150 V	170 J	1550 pF	20 mm	Disc	264 V	6.5 kA	240 V	200 V	1	216 V	85 °C	-40 °C	Through Hole
Bourns Inc. CV150K10BL1	150 V	41 J	510 pF	10 mm	Disc	264 V	2500 A	240 V	200 V	1	216 V	85 °C	-40 °C	Through Hole
