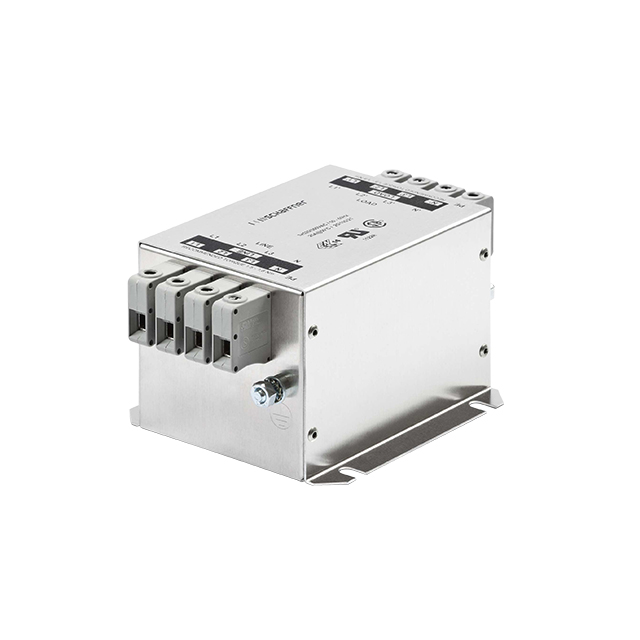

FN3256H-8-29

Active

TE Connectivity Raychem Cable Protection

LINE FILTER 480VAC 8A CHASSIS

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

LINE FILTER 480VAC 8A CHASSIS

Technical Specifications

Parameters and characteristics for this part

Specification	FN3256H-8-29

Applications	General Purpose
Approval Agency	CSA, ENEC, UR
Configuration	Single Stage
Current	8 A
Filter Type	Three Phase (Wye)
Frequency - Operating [Max]	60 Hz
Frequency - Operating [Min]	DC
Mounting Type	Chassis Mount
Operating Temperature [custom]	100 °C, -25 °C
Termination Style	Terminal Block
Voltage - Rated AC	480 V
Voltage - Rated AC (Phase to Ground/Neutral)	300 V
Voltage - Rated AC (Phase to Phase)	520 V

Part	Voltage - Rated AC	Applications	Frequency - Operating [Max]	Frequency - Operating [Min]	Current	Filter Type	Mounting Type	Termination Style	Voltage - Rated AC (Phase to Ground/Neutral)	Operating Temperature [custom]	Configuration	Voltage - Rated AC (Phase to Phase)	Approval Agency
TE Connectivity Raychem Cable Protection FN3256H-8-29	480 V	General Purpose	60 Hz	DC	8 A	Three Phase (Wye)	Chassis Mount	Terminal Block	300 V	-25 °C 100 °C	Single Stage	520 V	CSA ENEC UR
TE Connectivity Raychem Cable Protection FN3256H-36-33	480 V	General Purpose	60 Hz	DC	36 A	Three Phase (Wye)	Chassis Mount	Terminal Block	300 V	-25 °C 100 °C	Single Stage	520 V	CSA ENEC UR
TE Connectivity Raychem Cable Protection FN3256H-64-34	480 V	General Purpose	60 Hz	DC	64 A	Three Phase (Wye)	Chassis Mount	Terminal Block	300 V	-25 °C 100 °C	Single Stage	520 V	CSA ENEC UR
TE Connectivity Raychem Cable Protection FN3256H-160-40	480 V	General Purpose	60 Hz	DC	160 A	Three Phase (Wye)	Chassis Mount	Terminal Block	300 V	-25 °C 100 °C	Single Stage	520 V	CSA ENEC UR
TE Connectivity Raychem Cable Protection FN3256H-25-33	480 V	General Purpose	60 Hz	DC	25 A	Three Phase (Wye)	Chassis Mount	Terminal Block	300 V	-25 °C 100 °C	Single Stage	520 V	CSA ENEC UR

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Three Phase (Wye) EMC/EMI Line Filter 8 A 480V DC ~ 60Hz Single Stage Terminal Block
