YB226CWCKW01-5C-CB
ActiveNKK Switches

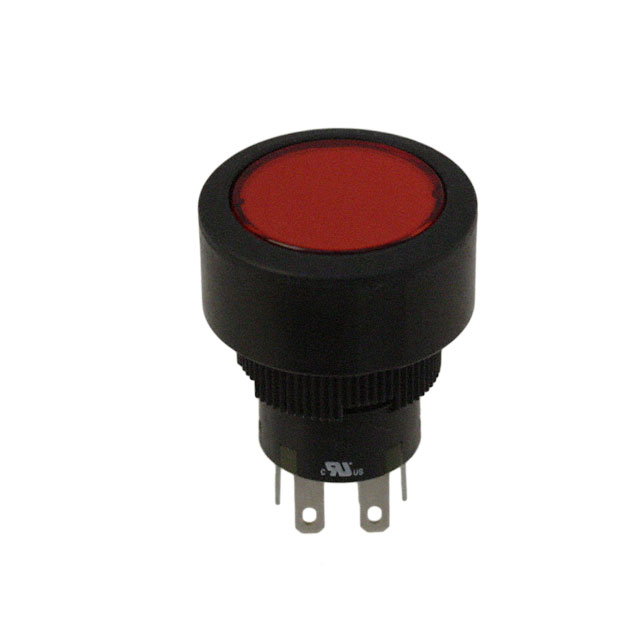

SWITCH PUSHBUTTON DPDT 3A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
YB226CWCKW01-5C-CB
ActiveNKK Switches
SWITCH PUSHBUTTON DPDT 3A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | YB226CWCKW01-5C-CB |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Flush, Button, Round |
| Circuit | DPDT |
| Color - Actuator/Cap | Red |
| Current Rating (Amps) | 3 A |
| Electrical Life | 100000 Cycles |
| Features | Tactile Feedback |
| Illumination Type, Color | Red, LED |
| Illumination Voltage (Nominal) | 1.9 VDC |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Mechanical Life | 200000 Cycles |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [diameter] | 22 mm |
| Switch Function | On-On |
| Termination Style | 0.11 in |
| Termination Style | Quick Connect, Solder |
| Termination Style | 2.8 mm |
| Type | Illuminated, Standard |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
YB226C Series
| Part | Switch Function | Termination Style | Termination Style | Termination Style | Illumination Type, Color | Operating Temperature [Max] | Operating Temperature [Min] | Type | Voltage Rating - AC | Current Rating (Amps) | Ingress Protection | Features | Illumination Voltage (Nominal) | Color - Actuator/Cap | Circuit | Voltage Rating - DC | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Actuator Marking | Mounting Type | Mechanical Life | Electrical Life | Actuator Type | Panel Cutout Dimensions [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NKK Switches | On-On | 0.11 in | Quick Connect Solder | 2.8 mm | Green LED | 50 °C | -25 °C | Illuminated Standard | 125 V | 3 A | IP65 - Dust Tight Water Resistant | Tactile/Audible Feedback | 5 VDC | Green | DPDT | 30 V | 21 mm | 21 mm | No Marking | Panel Mount Front | 200000 Cycles | 100000 Cycles | ||
NKK Switches | On-On | 0.11 in | Quick Connect Solder | 2.8 mm | Amber LED | 50 °C | -25 °C | Illuminated Standard | 125 V | 3 A | IP65 - Dust Tight Water Resistant | Tactile Feedback | 2 VDC | Clear | DPDT | 30 V | No Marking | Panel Mount Front | 200000 Cycles | 100000 Cycles | Button Flush Round | 22 mm | ||
NKK Switches | On-On | 0.11 in | Quick Connect Solder | 2.8 mm | LED Red | 50 °C | -25 °C | Illuminated Standard | 125 V | 3 A | IP65 - Dust Tight Water Resistant | Tactile Feedback | 1.9 VDC | Silver | DPDT | 30 V | No Marking | Panel Mount Front | 200000 Cycles | 100000 Cycles | Button Flush Round | 22 mm | ||
NKK Switches | On-On | 0.11 in | Quick Connect Solder | 2.8 mm | Green LED | 50 °C | -25 °C | Illuminated Standard | 28 V | 0.4 VA | IP65 - Dust Tight Water Resistant | Tactile Feedback | 5 VDC | Green | DPDT | 28 V | No Marking | Panel Mount Front | 200000 Cycles | 100000 Cycles | Button Flush Round | 22 mm | ||
NKK Switches | On-On | 0.11 in | Quick Connect Solder | 2.8 mm | 70 °C | -25 °C | Standard | 125 V | 3 A | IP65 - Dust Tight Water Resistant | Tactile/Audible Feedback | Clear | DPDT | 30 V | 21 mm | 21 mm | No Marking | Panel Mount Front | 200000 Cycles | 100000 Cycles | ||||
NKK Switches | On-On | 0.11 in | Quick Connect Solder | 2.8 mm | LED Red | 50 °C | -25 °C | Illuminated Standard | 125 V | 3 A | IP65 - Dust Tight Water Resistant | Tactile/Audible Feedback | 1.9 VDC | Silver | DPDT | 30 V | No Marking | Panel Mount Front | 200000 Cycles | 100000 Cycles | Button Flush Round | 22 mm | ||
NKK Switches | On-On | 0.11 in | Quick Connect Solder | 2.8 mm | LED Red | 50 °C | -25 °C | Illuminated Standard | 125 V | 3 A | IP65 - Dust Tight Water Resistant | Tactile Feedback | 1.9 VDC | Red | DPDT | 30 V | No Marking | Panel Mount Front | 200000 Cycles | 100000 Cycles | Button Flush Round | 22 mm | ||
NKK Switches | On-On | 0.11 in | Quick Connect Solder | 2.8 mm | Amber LED | 50 °C | -25 °C | Illuminated Standard | 125 V | 3 A | IP65 - Dust Tight Water Resistant | Tactile Feedback | 2 VDC | Yellow (White Filter/Diffuser) | DPDT | 30 V | No Marking | Panel Mount Front | 200000 Cycles | 100000 Cycles | Button Flush Round | 22 mm | ||
NKK Switches | On-On | 0.11 in | Quick Connect Solder | 2.8 mm | 70 °C | -25 °C | Standard | 125 V | 3 A | IP65 - Dust Tight Water Resistant | Tactile/Audible Feedback | DPDT | 30 V | No Marking | Panel Mount Front | 200000 Cycles | 100000 Cycles | Plunger for Cap | 22 mm | |||||
NKK Switches | On-On | 0.11 in | Quick Connect Solder | 2.8 mm | 70 °C | -25 °C | Standard | 28 V | 0.4 VA | IP65 - Dust Tight Water Resistant | Tactile/Audible Feedback | DPDT | 28 V | 21 mm | 21 mm | No Marking | Panel Mount Front | 200000 Cycles | 100000 Cycles | Plunger for Cap |
