FA1-NESP-PCB-2

Active

AMPHENOL RF

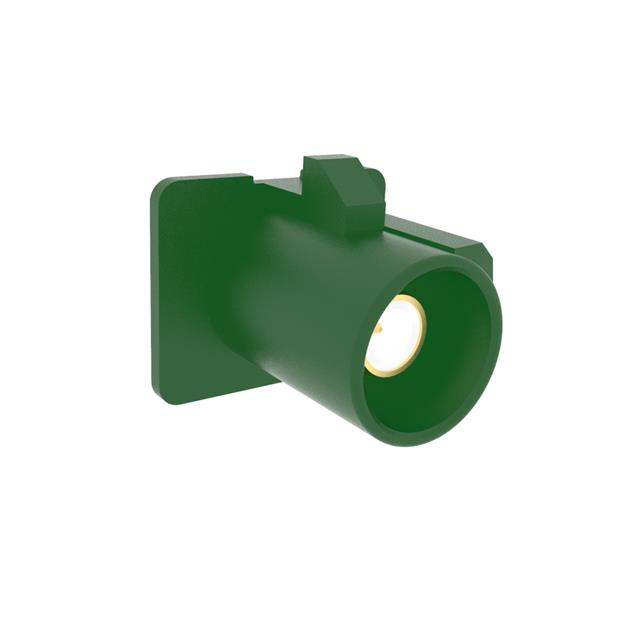

FAKRA GEN 1 PCB THROUGH HOLE STR

Search across all available documentation for this part.

Active

AMPHENOL RF

FAKRA GEN 1 PCB THROUGH HOLE STR

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	250	$ 3.70

General part information

SMB, Fakra Connector Plug, Male Pin 50 Ohms Through Hole Solder

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	FA1-NESP-PCB-2	FA1-NESP Series

Body Finish	Gold	Nickel, Gold
Body Material	Brass	Brass
Cable Group	-	58C, 9907, 58B, LMR-195, 58A, 303, 141, Belden B7806A, RG-58
Center Contact Material	Brass	Brass
Center Contact Plating	Gold	Gold
Connector Style	SMB, Fakra	SMB, Fakra
Connector Type	Male Pin, Plug	Male Pin, Plug
Contact Termination	Solder	Crimp, Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	Locking Ramp	Locking Ramp
Features	Code E	Code E
Frequency - Max [Max]	4 GHz	4 - 6000 GHz
Housing Color	Green, Leaf	Green, Leaf
Impedance	50 Ohms	50 Ohms
Includes	-	1 Ferrule, 1 Contact, 1 Connector
Insertion Loss	-	0.3 dB
Mounting Feature	-	Flange
Mounting Type	Through Hole	Through Hole, Board Edge, Cutout, Through Hole, Right Angle, Surface Mount
Number of Ports	1	1
Operating Temperature [Max]	85 °C	85 - 100 °C
Operating Temperature [Min]	-40 °C	-40 °C
Shield Termination	Solder	Crimp, Solder

CONN SMB 0HZ TO 4GHZ 50OHM CRIMP ST CABLE MOUNT PL GOLD OVER NICKEL TRAY

Part	Mounting Feature	Contact Termination	Body Material	Center Contact Material	Shield Termination	Insertion Loss	Center Contact Plating	Connector Type	Impedance	Frequency - Max [Max]	Body Finish	Operating Temperature [Max]	Operating Temperature [Min]	Connector Style	Features	Fastening Type	Number of Ports	Dielectric Material	Cable Group	Includes	Housing Color	Mounting Type
AMPHENOL RF FA1-NESP-C04-1	Flange	Crimp	Brass	Brass	Crimp	0.3 dB	Gold	Male Pin, Plug	50 Ohms	4 GHz	Nickel	100 °C	-40 °C	Fakra, SMB	Code E	Locking Ramp	1	Polytetrafluoroethylene (PTFE)	141, 303, 58A, 58B, 58C, 9907, Belden B7806A, LMR-195, RG-58	1 Connector, 1 Contact, 1 Ferrule	Green, Leaf
AMPHENOL RF FA1-NESP-PCBD6		Solder	Brass	Brass	Solder		Gold	Male Pin, Plug	50 Ohms	6000 MHz	Gold	100 °C	-40 °C	Fakra, SMB	Code E	Locking Ramp	1	Polytetrafluoroethylene (PTFE)			Green, Leaf	Through Hole
AMPHENOL RF FA1-NESP-PCB-0		Solder	Brass	Brass	Solder	0.3 dB	Gold	Male Pin, Plug	50 Ohms	4 GHz	Gold	100 °C	-40 °C	Fakra, SMB	Code E	Locking Ramp	1	Polytetrafluoroethylene (PTFE)			Green, Leaf	Board Edge, Cutout, Surface Mount, Through Hole, Right Angle
AMPHENOL RF FA1-NESP-PCB-2		Solder	Brass	Brass	Solder		Gold	Male Pin, Plug	50 Ohms	4 GHz	Gold	85 °C	-40 °C	Fakra, SMB	Code E	Locking Ramp	1	Polytetrafluoroethylene (PTFE)			Green, Leaf	Through Hole
