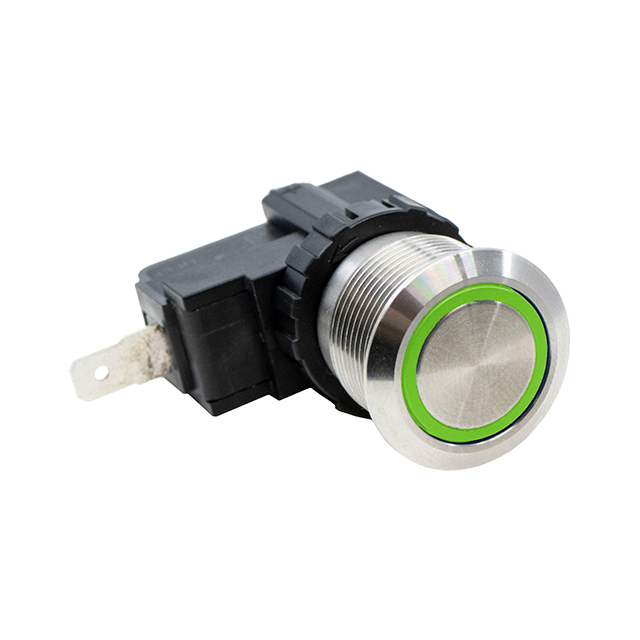

SAV4F13SS331
ActiveE-Switch
SWITCH PB SPDT 15A 125V
Deep-Dive with AI
Search across all available documentation for this part.
SAV4F13SS331
ActiveE-Switch
SWITCH PB SPDT 15A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SAV4F13SS331 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Flush, Button, Round |
| Circuit | SPDT |
| Color - Actuator/Cap | Silver |
| Current Rating (Amps) | 15 A |
| Electrical Life | 10000 Cycles |
| Illumination Type, Color | LED, Green |
| Illumination Voltage (Nominal) | 3 VDC |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [diameter] | 19.2 mm |
| Switch Function | On-On |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Type | Anti-Vandal, Illuminated |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 14.95 | |
| 10 | $ 13.40 | |||
| 30 | $ 12.81 | |||
| 50 | $ 12.15 | |||
| 100 | $ 11.71 | |||
| 250 | $ 10.97 | |||
| 500 | $ 10.16 | |||
| 1000 | $ 9.11 | |||
Description
General part information
SAV4 Series
Pushbutton Switch SPDT Anti-Vandal, Illuminated Panel Mount, Front
