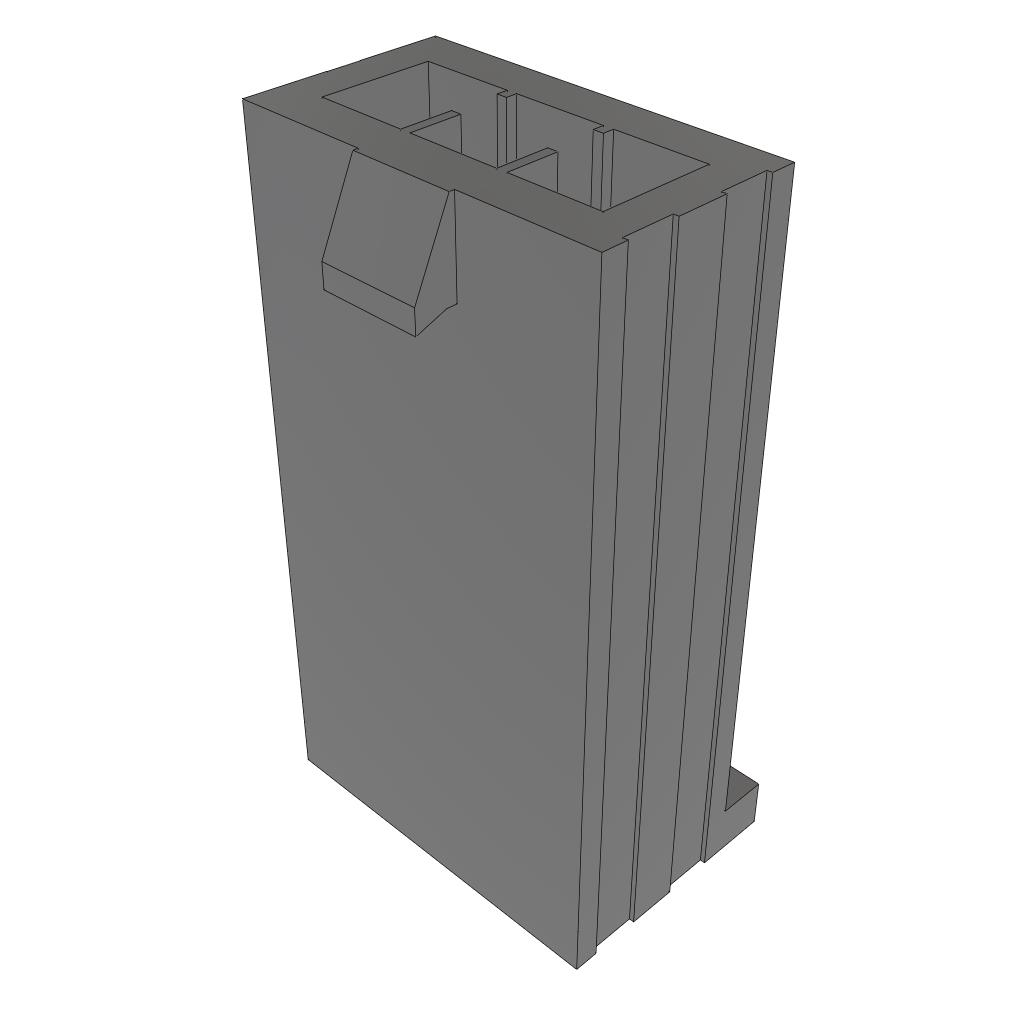

IPM1-03-S

Active

Samtec Inc.

CONN HSG 3POS 2.54MM

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HSG 3POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Part	Contact Termination	Insulation Material	Color	Note	Pitch [x]	Pitch [x]	Mounting Type	Contact Type	Fastening Type	Number of Rows	Row Spacing [x]	Row Spacing	Number of Positions
Samtec Inc. IPM1-03-S	Crimp	Polyamide (PA66) Nylon 6/6	White	Contacts Not Included	2.54 mm	0.1 in	Free Hanging (In-Line)	Male Pin	Locking Ramp	1
Samtec Inc. IPM1-03-D	Crimp	Polyamide (PA66) Nylon 6/6	White	Contacts Not Included	2.54 mm	0.1 in	Free Hanging (In-Line)	Male Pin	Locking Ramp	2	0.1 in	2.54 mm	6

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.39

General part information

3 Rectangular Connectors - Housings White 0.100" (2.54mm)
