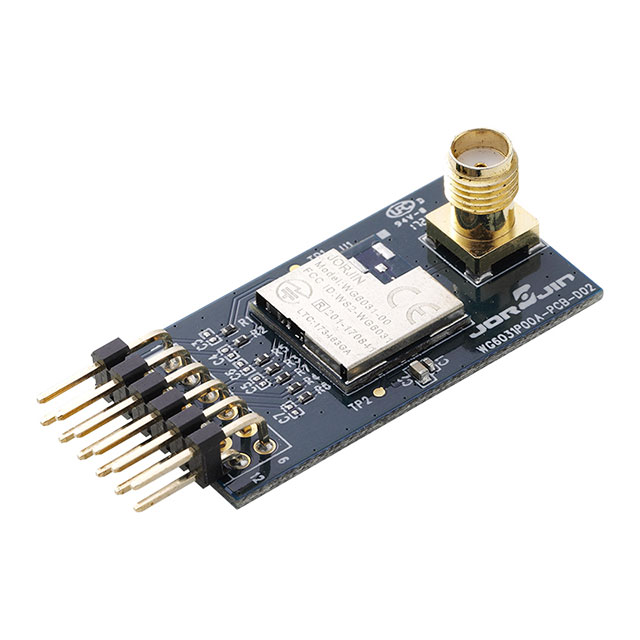

WG6031P00

Active

Jorjin Technologies Inc.

EVALUATION BOARD FOR WG6031-00

Search across all available documentation for this part.

Active

Jorjin Technologies Inc.

EVALUATION BOARD FOR WG6031-00

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	WG6031P00	WG6031 Series

Antenna Type	-	Tilt, Whip
Data Rate	-	150 Mbps
Frequency	2.4 GHz	2.4 GHz
Frequency	-	2.484 GHz
Frequency	-	2.412 GHz
Modulation	-	DSSS, OFDM, CCK
Mounting Type	-	Surface Mount
Operating Temperature	-	70 °C
Operating Temperature	-	0 °C
Package / Case	-	20-LGA Module
Power - Output	-	17 dBm
Protocol	-	802.11b/g/n
RF Family/Standard	-	WiFi
Sensitivity	-	-95 dBm
Supplied Contents	Board(s)	Board(s)
Type	Transceiver; 802.11 b/g/n (Wi-Fi, WiFi, WLAN)	Transceiver; 802.11 b/g/n (Wi-Fi, WiFi, WLAN)
Utilized IC / Part	-	RTL8189EM
Voltage - Supply	-	3.6 V
Voltage - Supply	-	3 V

EVALUATION BOARD FOR WG6031-00

Part	Supplied Contents	Frequency	Type	RF Family/Standard	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type	Utilized IC / Part	Frequency [Max]	Frequency [Min]	Modulation	Operating Temperature [Max]	Operating Temperature [Min]	Sensitivity	Package / Case	Data Rate	Protocol	Antenna Type	Power - Output
Jorjin Technologies Inc. WG6031P00	Board(s)	2.4 GHz	Transceiver; 802.11 b/g/n (Wi-Fi, WiFi, WLAN)
Jorjin Technologies Inc. WG6031-00				WiFi	3.6 V	3 V	Surface Mount	RTL8189EM	2.484 GHz	2.412 GHz	CCK, DSSS, OFDM	70 °C	0 °C	-95 dBm	20-LGA Module	150 Mbps	802.11b/g/n	Tilt, Whip	17 dBm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 43.75

General part information

WG6031-00 - Transceiver; 802.11 b/g/n (Wi-Fi, WiFi, WLAN) 2.4GHz Evaluation Board

Technical documentation and resources

No documents available
