N2564-6002-RB

Active

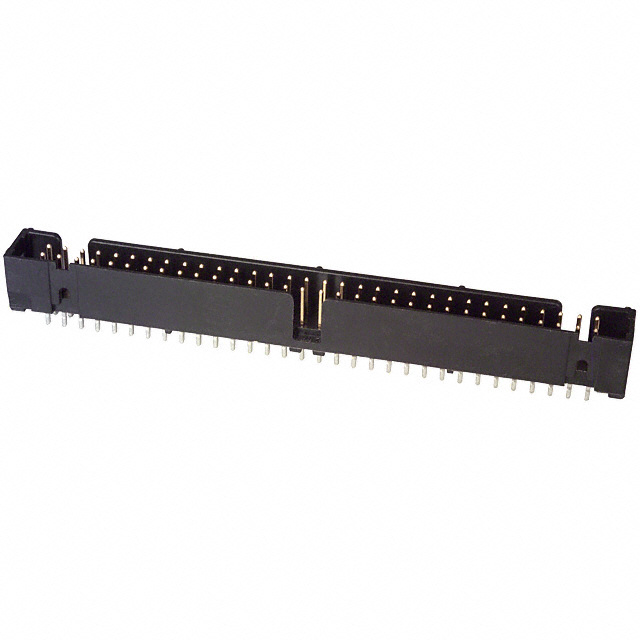

CONN HEADER VERT 64POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

N2564-6002-RB

Active

CONN HEADER VERT 64POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	N2564-6002-RB	N2564 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Finish Thickness - Post	200 µin	200 µin
Contact Finish Thickness - Post	5.08 µm	5.08 µm
Contact Length - Post	2.84 mm	2.84 - 3.94 mm
Contact Length - Post	0.112 in	0.112 - 0.155 "
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	1.75 A	1.75 A
Fastening Type	Push-Pull	Push-Pull
Features	Keying Slot	Pick and Place, Keying Slot
Insulation Color	Black	Black
Insulation Height [z]	9.91 mm	9.91 mm
Insulation Height [z]	0.39 in	0.39 in
Insulation Material	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)	Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled, Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Surface Mount, Through Hole
Number of Positions	64	64
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder

N2564 Series

CONN HEADER SMD 64POS 2.54MM

Part	Contact Finish - Mating	Shrouding	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Connector Type	Fastening Type	Insulation Material	Number of Positions Loaded	Current Rating (Amps)	Mounting Type	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Shape	Material Flammability Rating	Number of Rows	Features	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Post	Contact Material	Insulation Color	Pitch - Mating	Pitch - Mating	Style	Insulation Height [z]	Insulation Height [z]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Type	Contact Length - Post	Contact Length - Post
3M N2564-6V0C-RB-WH	Gold	Shrouded - 4 Wall	200 µin	5.08 µm	Header	Push-Pull	Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled	All	1.75 A	Surface Mount	64	30 Áin	0.76 Ám	Square	UL94 V-0	2	Keying Slot, Pick and Place	Solder	105 ░C	-55 °C	Tin	Copper Alloy	Black	0.1 in	2.54 mm	Board to Board, Cable	9.91 mm	0.39 in	2.54 mm	0.1 in	Male Pin
3M N2564-6003-RB	Gold	Shrouded - 4 Wall	200 µin	5.08 µm	Header	Push-Pull	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	All	1.75 A	Through Hole	64	30 Áin	0.76 Ám	Square	UL94 V-0	2	Keying Slot	Solder	105 ░C	-55 °C	Tin	Copper Alloy	Black	0.1 in	2.54 mm	Board to Board, Cable	9.91 mm	0.39 in	2.54 mm	0.1 in	Male Pin	3.94 mm	0.155 "
3M N2564-6002-RB	Gold	Shrouded - 4 Wall	200 µin	5.08 µm	Header	Push-Pull	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	All	1.75 A	Through Hole	64	30 Áin	0.76 Ám	Square	UL94 V-0	2	Keying Slot	Solder	105 ░C	-55 °C	Tin	Copper Alloy	Black	0.1 in	2.54 mm	Board to Board, Cable	9.91 mm	0.39 in	2.54 mm	0.1 in	Male Pin	2.84 mm	0.112 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.22
		10	$ 5.64
		168	$ 4.97
		504	$ 4.23
		1008	$ 3.61

Description

General part information

N2564 Series

Connector Header Through Hole 64 position 0.100" (2.54mm)
