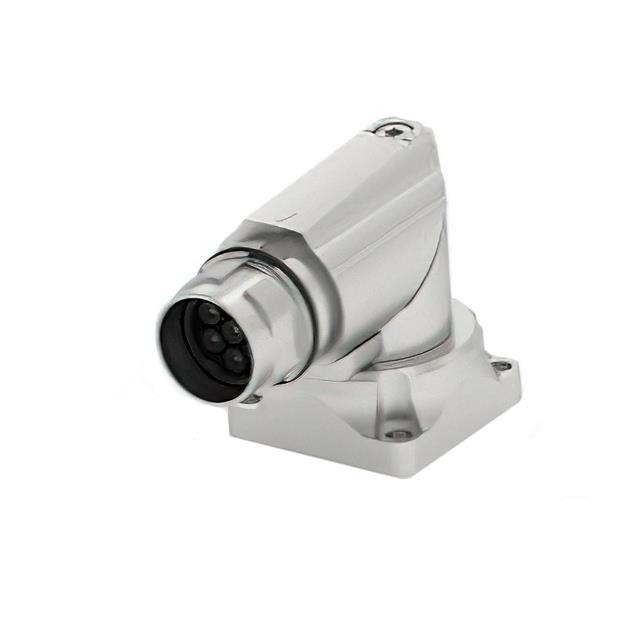

BGC894N0000053A000

Active

TE Intercontec

CONN RCPT HSG MALE 4P PNL MT RA

Search across all available documentation for this part.

Active

TE Intercontec

CONN RCPT HSG MALE 4P PNL MT RA

Technical Specifications

Parameters and characteristics for this part

Specification	BGC894N0000053A000

Connector Type	Receptacle Housing
Contact Shape	Circular
Fastening Type	Push-Twist
Features	Backshell, Rotatable
Housing Color	Silver
Includes	1 Backshell, 1 O-Ring, 1 Connector
Ingress Protection	IP66/IP67
Insert Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Mounting Type	Right Angle, Panel Mount
Note	Contacts Not Included
Number of Positions [custom]	1
Number of Positions [custom]	3
Number of Positions [custom]	4
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Shell Finish	Chromate
Shell Material	Zinc Die Cast
Shell Size - Insert	M17-4
Shielding	Unshielded
Type	For Male Pins

Part	Fastening Type	Note	Orientation	Ingress Protection	Shell Size - Insert	Shell Material	Shell Finish	Connector Type	Shielding	Housing Color	Insert Material	Mounting Type	Features	Contact Shape	Includes	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Feature	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Material Flammability Rating	Type
TE Intercontec BGC894N0000053A000	Push-Twist	Contacts Not Included	Keyed	IP66/IP67	M17-4	Zinc Die Cast	Chromate	Receptacle Housing	Unshielded	Silver	Polybutylene Terephthalate (PBT)	Panel Mount Right Angle	Backshell Rotatable	Circular	1 Backshell 1 Connector 1 O-Ring	-20 C	130 °C	Flange	1	3	4	UL94 V-0	For Male Pins

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 (3 Power + PE) Position Circular Connector Receptacle Housing Panel Mount, Right Angle Backshell, Rotatable
