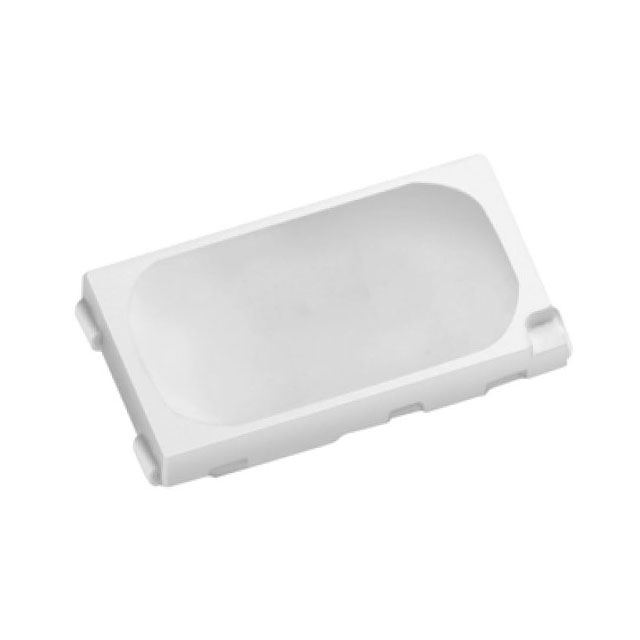

EAHP5630RA0

Active

Everlight Electronics Co Ltd

LED EAHP5630 RED 626NM 2PLCC

Search across all available documentation for this part.

Active

Everlight Electronics Co Ltd

LED EAHP5630 RED 626NM 2PLCC

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Package / Case	Package / Case	CCT (K)	Color	Flux @ 25°C, Current - Test	Voltage - Forward (Vf) (Typ)	Current - Max [Max]	Current - Test	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Supplier Device Package	Viewing Angle	CRI (Color Rendering Index)	Thermal Resistance of Package [diameter]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Lumens/Watt @ Current - Test
Everlight Electronics Co Ltd EAHP5630WA0	Surface Mount	5630 Metric	2212	6500 K	Cool White	66 lm	3.15 V	180 mA	150 mA	0.22 in	3 mm	0.118 in	5.6 mm	2-PLCC	120 °	80	21 °C/W	0.03 in	0.75 mm	140 lm/W
Everlight Electronics Co Ltd EAHP5630RA0	Surface Mount	5630 Metric	2212		Red		2.2 V	150 mA	150 mA	0.22 in	3 mm	0.118 in	5.6 mm	2-PLCC	120 °			0.03 in	0.75 mm
Everlight Electronics Co Ltd EAHP5630WA6	Surface Mount	5630 Metric	2212	2700 K	Warm White	55 lm	3.15 V	180 mA	150 mA	0.22 in	3 mm	0.118 in	5.6 mm	2-PLCC	120 °	80	21 °C/W	0.03 in	0.75 mm	116 lm/W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting Color EAHP5630 Red 626nm (620nm ~ 632nm) 2212 (5630 Metric)
