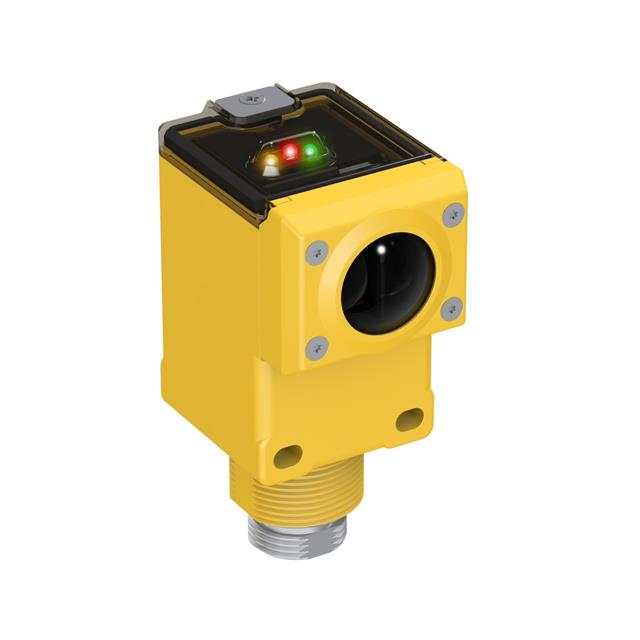

Q45UR3BA63CQ
ActivePHOTOELECTRIC SENSORS Q45UR DISCRETE SERIES: CONTROLLER; RANGE: 50-250 MM; INPUT: 12-24 V DC; OUTPUT: BIPOLAR: 1 NPN; 1 PNP; MINI-STYLE INTEGRAL QD
Q45UR3BA63CQ
ActivePHOTOELECTRIC SENSORS Q45UR DISCRETE SERIES: CONTROLLER; RANGE: 50-250 MM; INPUT: 12-24 V DC; OUTPUT: BIPOLAR: 1 NPN; 1 PNP; MINI-STYLE INTEGRAL QD
Description
General part information
Q45UR3 Series
PHOTOELECTRIC SENSORS Q45UR DISCRETE SERIES: CONTROLLER; RANGE: 50-250 MM; INPUT: 12-24 V DC; OUTPUT: BIPOLAR: 1 NPN; 1 PNP; MINI-STYLE INTEGRAL QD
Technical Specifications
Parameters and characteristics for this part
| Specification | Q45UR3BA63CQ |
|---|---|
| Indicator | LED |
| Ingress Protection | NEMA 6P, IP67 |
| Material - Body | Thermoplastic Polyester |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Output Type | NPN, PNP |
| Package / Case | Module |
| Sensing Distance Maximum | 9.843 " |
| Sensing Distance Minimum | 1.969 " |
| Sensor Type | Ultrasonic |
| Shielding | Unshielded |
| Termination Style | Connector |
| Voltage - Supply (Maximum) | 24 VAC |
| Voltage - Supply (Minimum) | 12 VDC |
