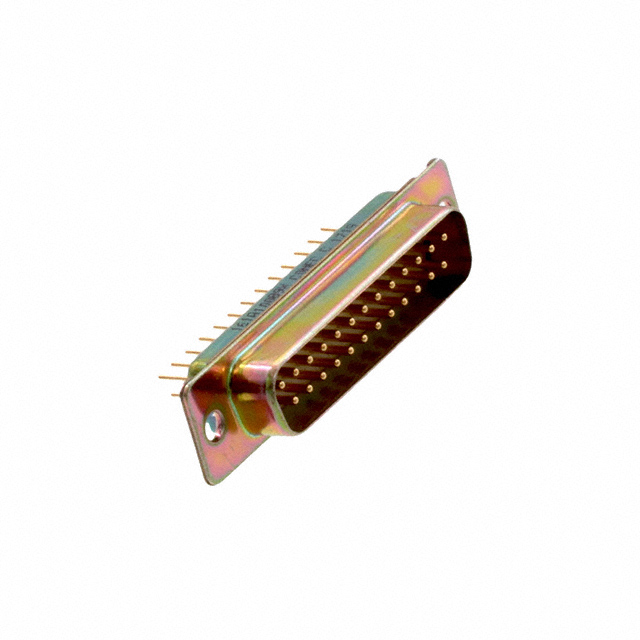

161A10089X

Active

Amphenol CONEC

CONN D-SUB PLUG 25POS VERT SLDR

Deep-Dive with AI

Search across all available documentation for this part.

161A10089X

Active

Amphenol CONEC

CONN D-SUB PLUG 25POS VERT SLDR

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	161A10089X

Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Type	Signal
Flange Feature	Housing/Shell (Unthreaded)
Mounting Type	Through Hole
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Steel, Yellow Chromate Plated Zinc
Shell Size, Connector Layout [custom]	DB, B
Shell Size, Connector Layout [custom]	3
Termination	Solder
Voltage Rating	125 VDC

161A100 Series

Part	Connector Type	Shell Material, Finish	Material Flammability Rating	Dielectric Material	Number of Rows	Flange Feature	Contact Finish	Contact Type	Number of Positions	Connector Style	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Color	Mounting Type	Shell Size, Connector Layout	Wire Gauge	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Shell Size, Connector Layout
Amphenol CONEC 161A10099X	Male Pins Plug	Steel Yellow Chromate Plated Zinc
Amphenol CONEC 161A10059X	Male Pins Plug	Steel Yellow Chromate Plated Zinc	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	3	Housing/Shell (Unthreaded)	Gold	Signal	50	D-Sub	Copper Alloy	8 çin	0.203 çm	Black	Free Hanging (In-Line)	5	20 AWG
Amphenol CONEC 161A10019X	Male Pins Plug	Steel Yellow Chromate Plated Zinc	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	2	Housing/Shell (Unthreaded)	Gold	Signal	9	D-Sub	Copper Alloy	8 çin	0.203 çm	Black	Free Hanging (In-Line)		20 AWG	DE E	1	125 VDC	-55 °C	125 °C
Amphenol CONEC 161A10039X	Male Pins Plug	Steel Yellow Chromate Plated Zinc	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	2	Housing/Shell (Unthreaded)	Gold	Signal		D-Sub	Copper Alloy	8 çin	0.203 çm	Black	Free Hanging (In-Line)		20 AWG	B DB	3
Amphenol CONEC 161A10079X	Male Pins Plug	Steel Yellow Chromate Plated Zinc			2	Housing/Shell (Unthreaded)	Gold	Signal	15	D-Sub					Through Hole	2				125 VDC	-55 °C	125 °C	Solder
Amphenol CONEC 161A10069X	Male Pins Plug	Steel Yellow Chromate Plated Zinc			2	Housing/Shell (Unthreaded)	Gold	Signal	9	D-Sub					Through Hole			DE E	1	125 VDC	-55 °C	125 °C	Solder
Amphenol CONEC 161A10089X	Male Pins Plug	Steel Yellow Chromate Plated Zinc			2	Housing/Shell (Unthreaded)	Gold	Signal		D-Sub					Through Hole			B DB	3	125 VDC	-55 °C	125 °C	Solder
Amphenol CONEC 161A10049X	Male Pins Plug	Steel Yellow Chromate Plated Zinc	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	2	Housing/Shell (Unthreaded)	Gold	Signal	37	D-Sub	Copper Alloy	8 çin	0.203 çm	Black	Free Hanging (In-Line)		20 AWG							4 (DC C)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.08
		10	$ 8.18
		25	$ 7.70
		50	$ 7.50
		100	$ 7.31
		250	$ 6.52
		500	$ 6.12
		1000	$ 5.41

Description

General part information

161A100 Series

25 Position D-Sub Plug, Male Pins Connector

Documents

Technical documentation and resources

No documents available
