CYW20730A1KFBGT

Active

Infineon Technologies

WIRELESS BLUETOOTH TRANSCEIVER

Search across all available documentation for this part.

Active

Infineon Technologies

WIRELESS BLUETOOTH TRANSCEIVER

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Max]	Mounting Type	Frequency	Current - Transmitting [Max]	Current - Transmitting [Min]	Package / Case	Serial Interfaces	Voltage - Supply	Type	RF Family/Standard	Modulation	Power - Output	Data Rate (Max)	Current - Receiving	Supplier Device Package	Sensitivity	GPIO	Protocol	Current - Transmitting
Infineon Technologies CYW20730A2KFBG	70 °C	Surface Mount	2.4 GHz	24 mA	19 mA	64-VFBGA	I2C SPI UART	1.2 V	TxRx + MCU	Bluetooth	GFSK	4 dBm	1 Mbps	26.6 mA	64-FBGA (7x7)	-88 dBm	4	Bluetooth v3.0
Infineon Technologies CYW20730A2KML2GT	70 °C	Surface Mount	2.4 GHz			32-VFQFN Exposed Pad	I2C SPI UART	3.8 V	TxRx + MCU	Bluetooth		4 dBm	1 Mbps	26.6 mA	32-QFN (5x5)	-88 dBm	14	Bluetooth v3.0	24 mA
Infineon Technologies CYW20730A1KFBGT	70 °C	Surface Mount	2.4 GHz	24 mA	19 mA	64-VFBGA	I2C SPI UART	1.2 V	TxRx + MCU	Bluetooth	GFSK	4 dBm	1 Mbps	26.6 mA	64-FBGA (7x7)	-88 dBm	4	Bluetooth v3.0
Infineon Technologies CYW20730A1KMLGT	70 °C	Surface Mount	2.4 GHz			40-VFQFN Exposed Pad	I2C SPI UART	3.8 V	TxRx + MCU	Bluetooth		4 dBm	1 Mbps	26.6 mA	40-QFN (6x6)	-88 dBm	14	Bluetooth v3.0	24 mA
Infineon Technologies CYW20730A2KFBG	70 °C	Surface Mount	2.4 GHz	24 mA	19 mA	64-VFBGA	I2C SPI UART	1.2 V	TxRx + MCU	Bluetooth	GFSK	4 dBm	1 Mbps	26.6 mA	64-FBGA (7x7)	-88 dBm	4	Bluetooth v3.0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

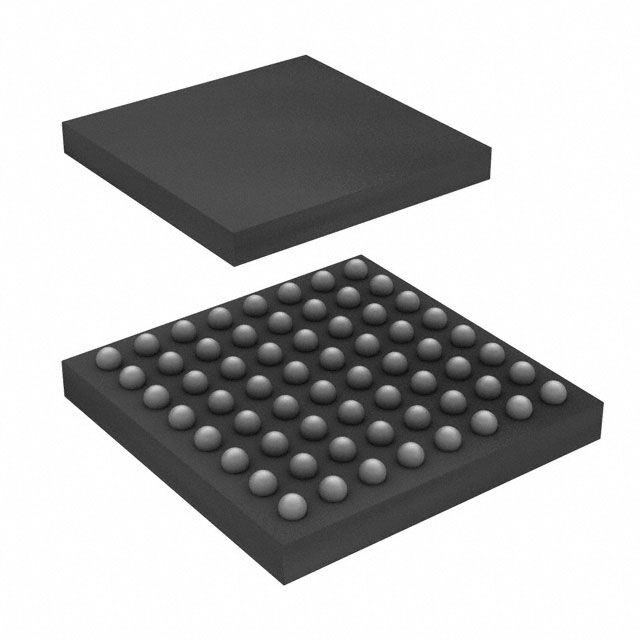

IC RF TxRx + MCU Bluetooth Bluetooth v3.0 2.4GHz 64-VFBGA

Technical documentation and resources
