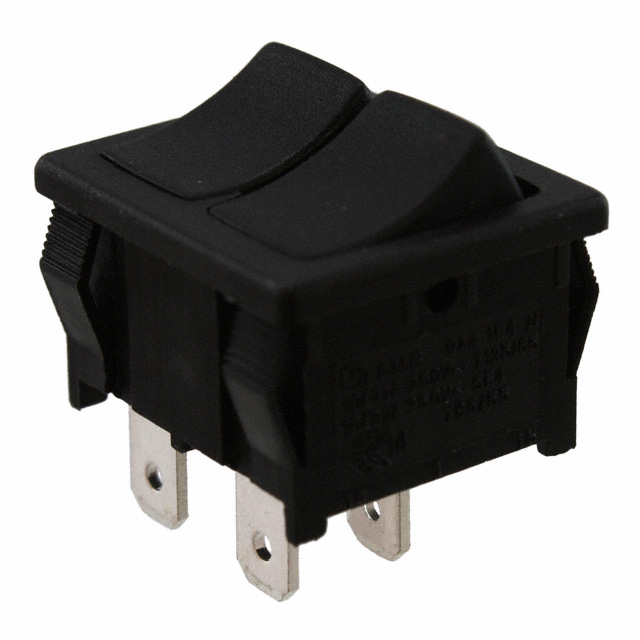

RA21131100

Active

E-Switch

SWITCH ROCKER SPSTX2 10A 125V

Search across all available documentation for this part.

Active

E-Switch

SWITCH ROCKER SPSTX2 10A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	RA21131100

Actuator Marking	No Marking
Actuator Type	Concave (Curved), Dual
Approval Agency	UL, VDE, cUL
Circuit	SPST x 2
Color - Actuator/Cap	Black
Current Rating (Amps)	10 A
Electrical Life	10000 Cycles
Ingress Protection	IP54 - Dust Protected, Water Resistant
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [x]	22 mm
Panel Cutout Dimensions [y]	19.2 mm
Switch Function	On-Off
Termination Style	Quick Connect - 0.187" (4.7mm)
Voltage Rating - AC	125 V

Part	Voltage Rating - AC	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Ingress Protection	Mounting Type	Color - Actuator/Cap	Termination Style	Actuator Marking	Approval Agency	Circuit	Electrical Life	Switch Function	Current Rating (Amps)	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]
E-Switch RA21131100	125 V	19.2 mm	22 mm	IP54 - Dust Protected Water Resistant	Panel Mount Snap-In	Black	Quick Connect - 0.187" (4.7mm)	No Marking	cUL UL VDE	SPST x 2	10000 Cycles	On-Off	10 A	Concave (Curved) Dual	-20 C	105 ░C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Rocker Switch SPST x 2 10A (AC) 125 V Panel Mount, Snap-In

Technical documentation and resources

No documents available
