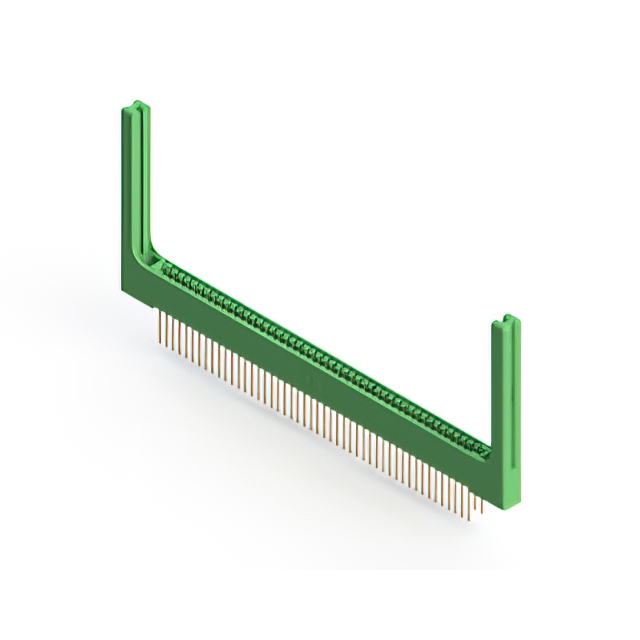

346-096-540-258
ActiveEDAC Inc.
CARD EDGE CONNECTORS ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
346-096-540-258
ActiveEDAC Inc.
CARD EDGE CONNECTORS ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 346-096-540-258 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Card Guides |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 96 |
| Number of Positions/Bay/Row [custom] | 48 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Dual |
| Termination | Wire Wrap |
| Termination Rows | 2 |
346-096 Series
...
| Part | Contact Finish | Termination | Color | Features | Flange Feature | Mounting Type | Termination Rows | Number of Positions | Number of Positions/Bay/Row [custom] | Contact Finish Thickness | Contact Finish Thickness | Card Type | Number of Rows | Read Out | Material - Insulation | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Pitch [x] | Pitch [x] | Gender | Flange Feature | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Gold | Wire Wrap | Green | Card Guides | 4-40 Threaded Insert Top Mount Opening | Through Hole | 2 | 96 | 48 | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | 2 | Dual | Polyester Thermoplastic | Cantilever | -40 °C | 105 ░C | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.125 in | 3.18 mm | Female | ||||
EDAC Inc. | Gold | Solder | Green | 4-40 Threaded Insert Top Mount Opening | Board Edge Straddle Mount | 2 | 96 | 48 | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | 2 | Dual | Polyester Thermoplastic | Cantilever | -40 °C | 105 ░C | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.125 in | 3.18 mm | Female | |||||
EDAC Inc. | Gold | Solder | Green | Flush Mount M3 Threaded Insert Top Opening | Through Hole | 2 | 96 | 48 | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | 2 | Dual | Polyester Thermoplastic | Cantilever | -40 °C | 105 ░C | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.125 in | 3.18 mm | Female | |||||
EDAC Inc. | Gold | Wire Wrap | Green | Side Mount Opening Unthreaded | Through Hole | 2 | 96 | 48 | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | 2 | Dual | Polyester Thermoplastic | Cantilever | -40 °C | 105 ░C | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.125 in | 3.18 mm | Female | 3.25 mm | 0.128 in | |||
EDAC Inc. | Gold | Solder Eyelet(s) | Green | Through Hole | 2 | 96 | 48 | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | 2 | Dual | Polyester Thermoplastic | Cantilever | -40 °C | 105 ░C | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.125 in | 3.18 mm | Female | 3.25 mm | 0.128 in | ||||
EDAC Inc. | Gold | Solder Wire Wrap | Green | Floating Bobbin Flush Mount | Through Hole Right Angle | 2 | 96 | 48 | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | 2 | Dual | Polyester Thermoplastic | Cantilever | -40 °C | 105 ░C | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.125 in | 3.18 mm | Female | 0.116 in | 2.95 mm | |||
EDAC Inc. | Gold | Wire Wrap | Green | Card Guides | 4-40 Flush Mount Threaded Insert Top Opening | Through Hole | 2 | 96 | 48 | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | 2 | Dual | Polyester Thermoplastic | Cantilever | -40 °C | 105 ░C | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.125 in | 3.18 mm | Female | ||||
EDAC Inc. | Gold | Solder Eyelet(s) | Green | Card Extender | Flush Mount M3 Threaded Insert Top Opening | Board Edge Straddle Mount | 2 | 96 | 48 | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | 2 | Dual | Polyester Thermoplastic | Cantilever | -40 °C | 105 ░C | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.125 in | 3.18 mm | Female | ||||
EDAC Inc. | Gold | Solder | Green | Flush Mount Top Opening Unthreaded | Through Hole | 2 | 96 | 48 | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | 2 | Dual | Polyester Thermoplastic | Cantilever | -40 °C | 105 ░C | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.125 in | 3.18 mm | Female | 0.128 " | 3.25 mm | |||
EDAC Inc. | Gold | Solder Eyelet(s) | Green | Flush Mount Top Opening Unthreaded | Through Hole | 2 | 96 | 48 | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | 2 | Dual | Polyester Thermoplastic | Cantilever | -40 °C | 105 ░C | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.125 in | 3.18 mm | Female | 0.156 in | 3.96 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
346-096 Series
96 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Green
