K14-040.120081
ActiveEAO

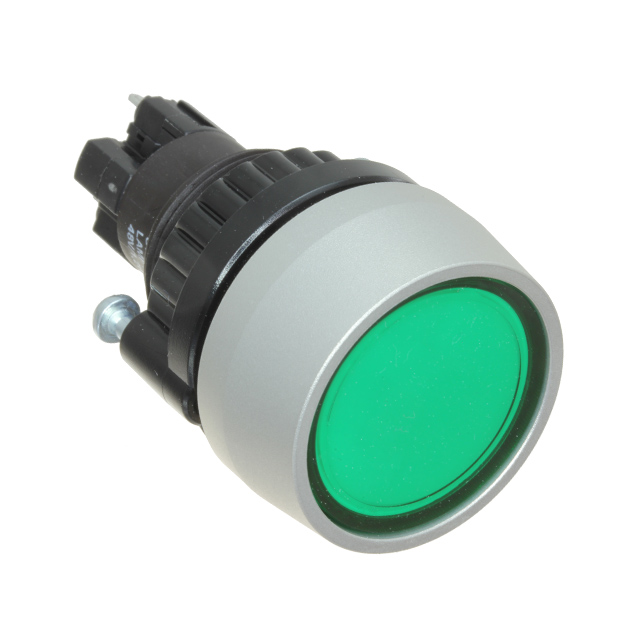

INDICATOR PANEL LED GRN 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
K14-040.120081
ActiveEAO
INDICATOR PANEL LED GRN 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | K14-040.120081 | K14-040 Series |
|---|---|---|
| Current | 7 mA | 7 - 14 mA |
| Ingress Protection | IP67 | IP67 |
| Lamp Color | Green | Yellow, Green, Red |
| Lens Color | Green | Yellow, Green, Red |
| Lens Size [diameter] | 29 mm | 29 mm |
| Lens Transparency | Clear | Clear |
| Panel Cutout Dimensions | 0.88 in | 0.88 in |
| Panel Cutout Dimensions | 22.3 mm | 22.3 mm |
| Panel Cutout Shape | Round | Round |
| Ratings | AC/DC | AC/DC |
| Termination Style | Solder Lug | Solder Lug |
| Type | LED | LED |
| Voltage | 24 V | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 29.87 | |
| 10 | $ 27.39 | |||
K14-040 Series
INDICATOR PANEL LED YLW 24V
| Part | Lens Size [diameter] | Panel Cutout Dimensions | Panel Cutout Dimensions | Voltage | Termination Style | Type | Panel Cutout Shape | Ratings | Lens Transparency | Lamp Color | Lens Color | Ingress Protection | Current |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
29 mm | 0.88 in | 22.3 mm | 24 V | Solder Lug | LED | Round | AC/DC | Clear | Yellow | Yellow | IP67 | 14 mA | |
29 mm | 0.88 in | 22.3 mm | 24 V | Solder Lug | LED | Round | AC/DC | Clear | Green | Green | IP67 | 7 mA | |
29 mm | 0.88 in | 22.3 mm | 24 V | Solder Lug | LED | Round | AC/DC | Clear | Red | Red | IP67 |
Description
General part information
K14-040 Series
LED Panel Indicator Green Clear 24V 7mA Solder Lug
