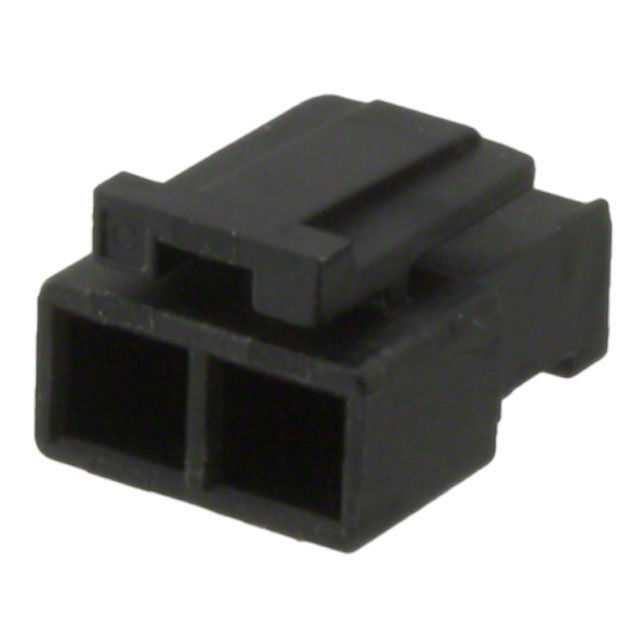

ES3S002SZA
ActiveJAE Electronics
CONN SSL RCPT HSG 2POS 3MM CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ES3S002SZA
ActiveJAE Electronics
CONN SSL RCPT HSG 2POS 3MM CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ES3S002SZA |
|---|---|
| Current Rating (Amps) | 2 A |
| Fastening Type | Latch Lock |
| Housing Color | Black |
| Mating Cycles | 20 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 3 mm |
| Pitch [x] | 0.118 in |
| Style | Board to Cable/Wire |
| Termination | Crimp |
| Voltage Rating | 200 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.34 | |
| 10 | $ 0.29 | |||
| 100 | $ 0.22 | |||
| 1000 | $ 0.16 | |||
| 5000 | $ 0.14 | |||
| 10000 | $ 0.13 | |||
Description
General part information
ES3S002S Series
SSL Connector 2 Position Receptacle Housing for Socket Contact Board to Cable/Wire 0.118" (3.00mm) Crimp
