Specification	5353190-6

Connector Type	Center Strip Contacts, Receptacle
Contact Finish	Gold
Contact Finish Thickness	8 µin
Features	Board Guide, Solder Retention
Height Above Board	0.128 in
Mated Stacking Height	4 mm
Mounting Type	Surface Mount
Number of Positions	80
Number of Rows	2
Pitch	0.024 in

5353190 Series

Part	Contact Finish Thickness	Contact Finish	Connector Type	Pitch	Number of Rows	Number of Positions	Mounting Type	Height Above Board	Features	Mated Stacking Height

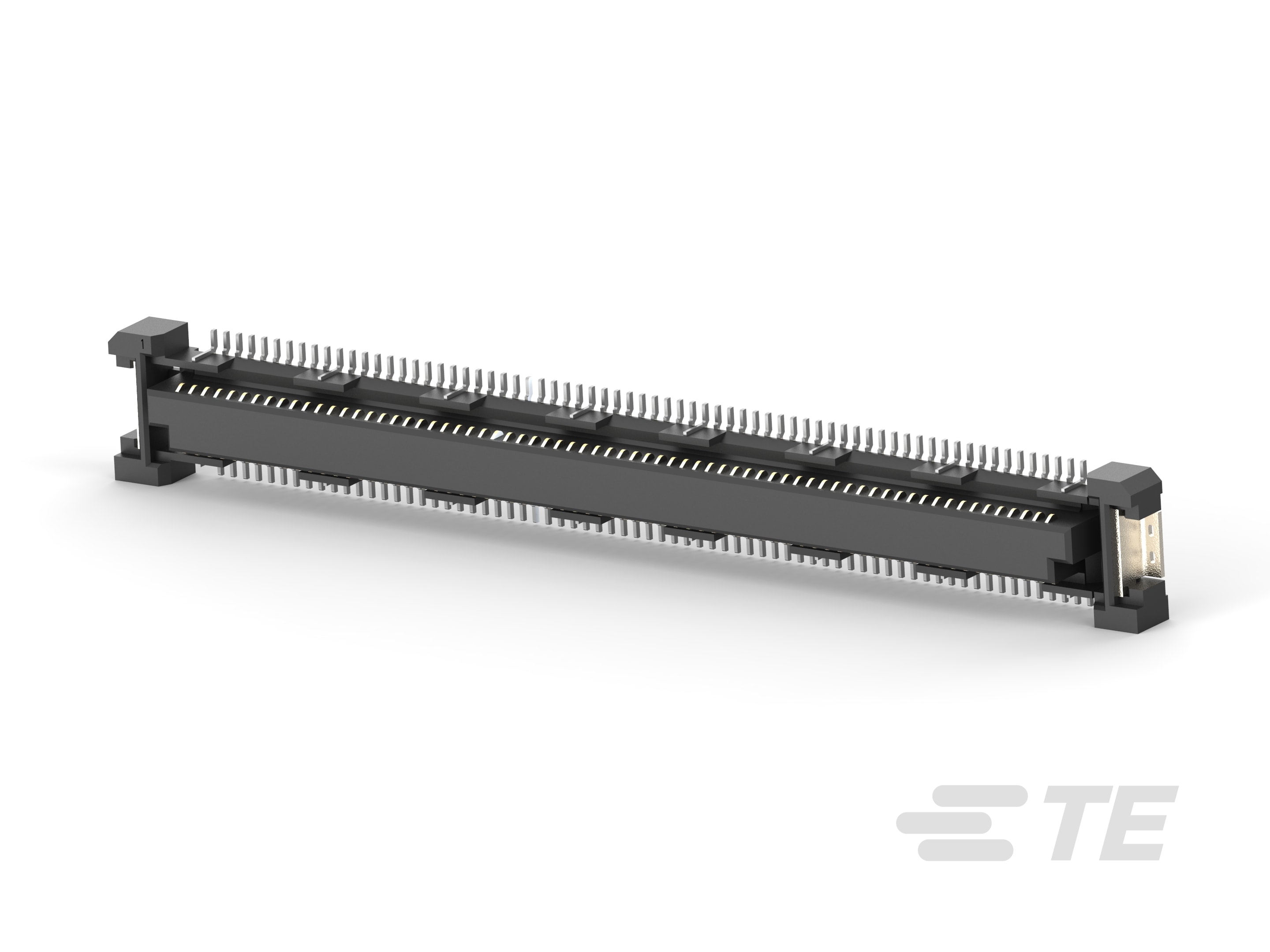

TE Connectivity AMP Connectors 1-5353190-0	8 µin	Gold	Center Strip Contacts Receptacle	0.024 in	2	140	Surface Mount	0.128 in	Board Guide Solder Retention	4 mm
TE Connectivity AMP Connectors 1-5353190-1	8 µin	Gold	Center Strip Contacts Receptacle	0.024 in	2	160	Surface Mount	0.128 in	Board Guide Solder Retention	4 mm
TE Connectivity AMP Connectors 5353190-6	8 µin	Gold	Center Strip Contacts Receptacle	0.024 in	2	80	Surface Mount	0.128 in	Board Guide Solder Retention	4 mm
