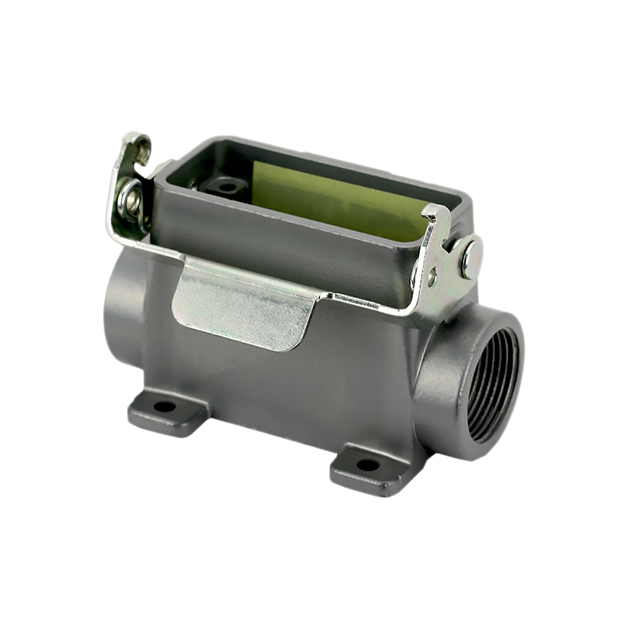

C146 10F015 500 2

Active

Amphenol Tuchel Industrial

CONN BASE SIDE ENTRY SZA10 PG21

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN BASE SIDE ENTRY SZA10 PG21

Technical Specifications

Parameters and characteristics for this part

Specification	C146 10F015 500 2

Connector Type	Base - Box Mount
Housing Material	Aluminum Alloy, Die Cast
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Size	A10
Size / Dimension [x]	3.307 in
Size / Dimension [x]	84 mm
Size / Dimension [y]	1.969 in
Size / Dimension [y]	50 mm
Size / Dimension [z]	2.047 in
Size / Dimension [z]	52 mm
Style	Side Entry
Thread Size	PG21

Part	Housing Material	Features	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Connector Type	Size	Style	Lock Location	Ingress Protection	Thread Size	Operating Temperature [Max]	Operating Temperature [Min]
Amphenol Tuchel Industrial C146 10F015 600 2	Aluminum Alloy Die Cast	Feed Through	3.307 in	1.969 in	2.047 in	50 mm	52 mm	84 mm	Base - Box Mount	A10	Side Entry	Locking Clip (1) on Base Bottom	IP65 - Dust Tight Water Resistant	PG21	100 °C	-40 °C
Amphenol Tuchel Industrial C146 10F015 606 2	Aluminum Alloy Die Cast		3.307 in	1.969 in	2.047 in	50 mm	52 mm	84 mm	Base - Box Mount	A10	Side Entry	Locking Clip (1) on Base Bottom	IP65 - Dust Tight Water Resistant	PG21	100 °C	-40 °C
Amphenol Tuchel Industrial C146 10F015 500 2	Aluminum Alloy Die Cast		3.307 in	1.969 in	2.047 in	50 mm	52 mm	84 mm	Base - Box Mount	A10	Side Entry	Locking Clip (1) on Base Bottom	IP65 - Dust Tight Water Resistant	PG21	100 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	30	$ 13.80

General part information

Base - Box Mount Connector Side Entry PG21 A10 IP65 - Dust Tight, Water Resistant
