345-076-521-803
ActiveEDAC Inc.

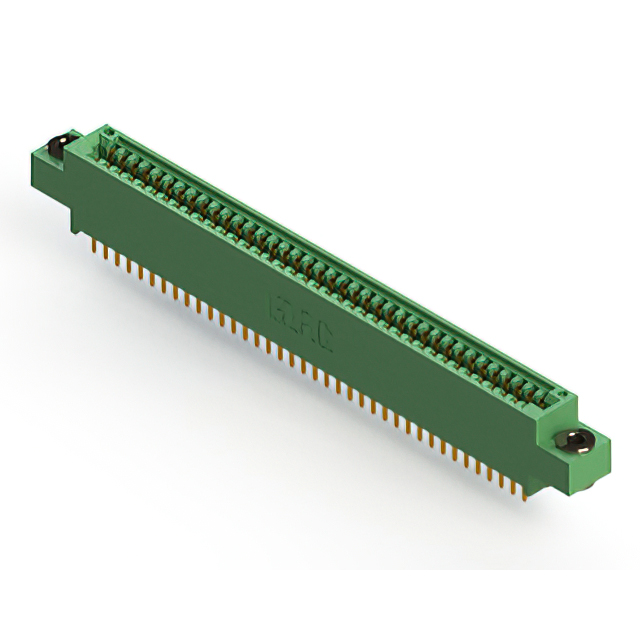

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 76 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
345-076-521-803
ActiveEDAC Inc.
CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 76 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 345-076-521-803 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Mount Opening, Floating Bobbin |
| Flange Feature [diameter] | 2.95 mm |
| Flange Feature [diameter] | 0.116 in |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 76 |
| Number of Positions/Bay/Row [custom] | 38 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
345-076 Series
...
| Part | Color | Mounting Type | Gender | Material - Insulation | Pitch [x] | Pitch [x] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Type | Contact Material | Termination | Contact Finish | Read Out | Operating Temperature [Min] | Operating Temperature [Max] | Termination Rows | Number of Positions/Bay/Row [custom] | Card Type | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Number of Rows | Features | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Green | Through Hole | Female | Polyester Thermoplastic | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Copper Alloy | Wire Wrap | Gold | Dual | -40 °C | 105 ░C | 2 | 38 | Non Specified - Dual Edge | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | 10 Áin | 0.25 Ám | 76 | 2 | |||
EDAC Inc. | Green | Through Hole | Female | Polyester Thermoplastic | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Copper Alloy | Solder | Gold | Dual | -40 °C | 105 ░C | 2 | 38 | Non Specified - Dual Edge | 4-40 Threaded Insert Top Mount Opening | 10 Áin | 0.25 Ám | 76 | 2 | Card Guides | ||||
EDAC Inc. | Green | Through Hole | Female | Polyester Thermoplastic | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Copper Alloy | Solder | Gold | Dual | -40 °C | 105 ░C | 2 | 38 | Non Specified - Dual Edge | M3 Threaded Insert Top Mount Opening | 10 Áin | 0.25 Ám | 76 | 2 | |||||
EDAC Inc. | Green | Through Hole Right Angle | Female | Polyester Thermoplastic | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Copper Alloy | Solder | Gold | Dual | -40 °C | 105 ░C | 2 | 38 | Non Specified - Dual Edge | 3.96 mm | 0.156 in | Top Mount Opening Unthreaded | 10 Áin | 0.25 Ám | 76 | 2 | |||
EDAC Inc. | Green | Through Hole | Female | Polyester Thermoplastic | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Copper Alloy | Wire Wrap | Gold | Dual | -40 °C | 105 ░C | 2 | 38 | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | 76 | 2 | 3.25 mm | 0.128 in | ||||
EDAC Inc. | Green | Board Edge Straddle Mount | Female | Polyester Thermoplastic | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Copper Alloy | Solder | Gold | Dual | -40 °C | 105 ░C | 2 | 38 | Non Specified - Dual Edge | 4-40 Threaded Insert Top Mount Opening | 10 Áin | 0.25 Ám | 76 | 2 | Card Extender | ||||
EDAC Inc. | Green | Board Edge Straddle Mount | Female | Polyester Thermoplastic | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Copper Alloy | Solder Eyelet(s) | Gold | Dual | -40 °C | 105 ░C | 2 | 38 | Non Specified - Dual Edge | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | 10 Áin | 0.25 Ám | 76 | 2 | Card Extender | ||
EDAC Inc. | Green | Through Hole | Female | Polyester Thermoplastic | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Copper Alloy | Wire Wrap | Gold | Dual | -40 °C | 105 ░C | 2 | 38 | Non Specified - Dual Edge | 4-40 Threaded Insert Top Mount Opening | 10 Áin | 0.25 Ám | 76 | 2 | Card Guides | ||||
EDAC Inc. | Green | Through Hole | Female | Polyester Thermoplastic | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Copper Alloy | Solder | Gold | Dual | -40 °C | 105 ░C | 2 | 38 | Non Specified - Dual Edge | 2.95 mm | 0.116 in | Floating Bobbin Top Mount Opening | 10 Áin | 0.25 Ám | 76 | 2 | |||
EDAC Inc. | Green | Board Edge Straddle Mount | Female | Polyester Thermoplastic | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Copper Alloy | Solder | Gold | Dual | -40 °C | 105 ░C | 2 | 38 | Non Specified - Dual Edge | 4-40 Threaded Insert Top Mount Opening | 10 Áin | 0.25 Ám | 76 | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
345-076 Series
76 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
