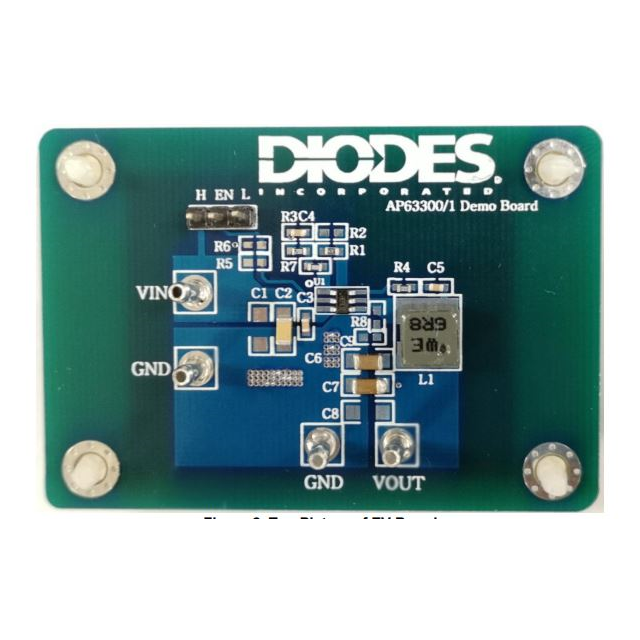

AP63301WU-EVM
ActiveDiodes Inc
EVAL BOARD FOR AP63301
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AP63301WU-EVM |
|---|---|
| Board Type | Fully Populated |
| Current - Output | 3 A |
| Frequency - Switching | 500 kHz |
| Main Purpose | DC/DC, Step Down |
| Outputs and Type | Non-Isolated |
| Outputs and Type | 1 |
| Regulator Topology | Buck |
| Supplied Contents | Board(s) |
| Utilized IC / Part | AP63301 |
| Voltage - Input [Max] | 32 V |
| Voltage - Input [Min] | 3.8 V |
| Voltage - Output | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 37.39 | |
Description
General part information
AP63301 Series
AP63301 - DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
