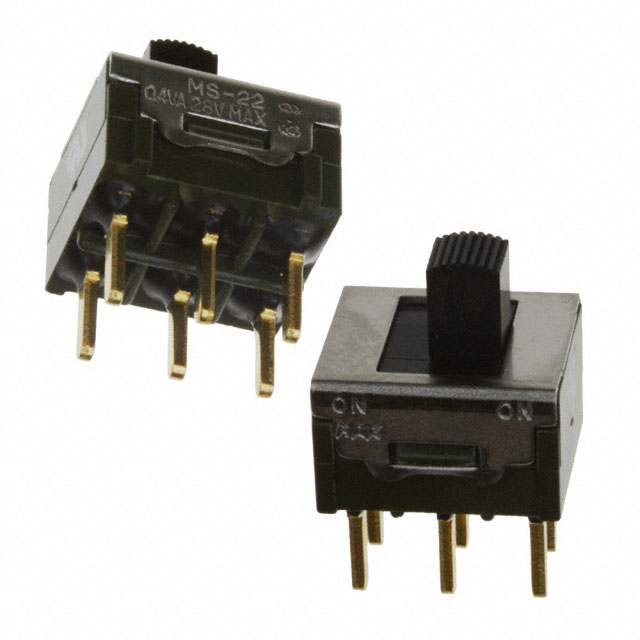

MS22ANG03/U

Obsolete

NKK Switches

SWITCH SLIDE DPDT 0.4VA 28V

Search across all available documentation for this part.

Obsolete

NKK Switches

SWITCH SLIDE DPDT 0.4VA 28V

Technical Specifications

Parameters and characteristics for this part

Specification	MS22ANG03/U

Actuator Length [z]	5.1 mm
Actuator Material	Polybutylene Terephthalate (PBT), Glass Filled
Actuator Type	Standard
Circuit	DPDT
Contact Finish	Gold
Contact Material	Copper
Contact Timing	Non-Shorting
Current Rating (Amps)	0.4 VA
Electrical Life	50000 Cycles
Features	Epoxy Sealed Terminals
Mechanical Life	100000 Cycles
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Switch Function	On-On
Switch Travel [custom]	2.2 mm
Termination Style	PC Pin
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

Part	Switch Function	Actuator Material	Actuator Length [z]	Mechanical Life	Circuit	Features	Voltage Rating - DC	Contact Timing	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - AC	Actuator Type	Switch Travel [custom]	Contact Material	Contact Finish	Mounting Type	Electrical Life	Current Rating (Amps)
NKK Switches MS22ANG03/U	On-On	Polybutylene Terephthalate (PBT) Glass Filled	5.1 mm	100000 Cycles	DPDT	Epoxy Sealed Terminals	28 V	Non-Shorting	PC Pin	-30 ░C	85 °C	28 V	Standard	2.2 mm	Copper	Gold	Through Hole	50000 Cycles	0.4 VA
NKK Switches MS22ANG03	On-On	Polybutylene Terephthalate (PBT) Glass Filled	5.1 mm	100000 Cycles	DPDT	Epoxy Sealed Terminals	28 V	Non-Shorting	PC Pin	-30 ░C	85 °C	28 V	Standard	2.2 mm	Copper	Gold	Through Hole	50000 Cycles	0.4 VA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Slide Switch DPDT Through Hole
