NYW04010005LL-5

Active

YS TECH USA

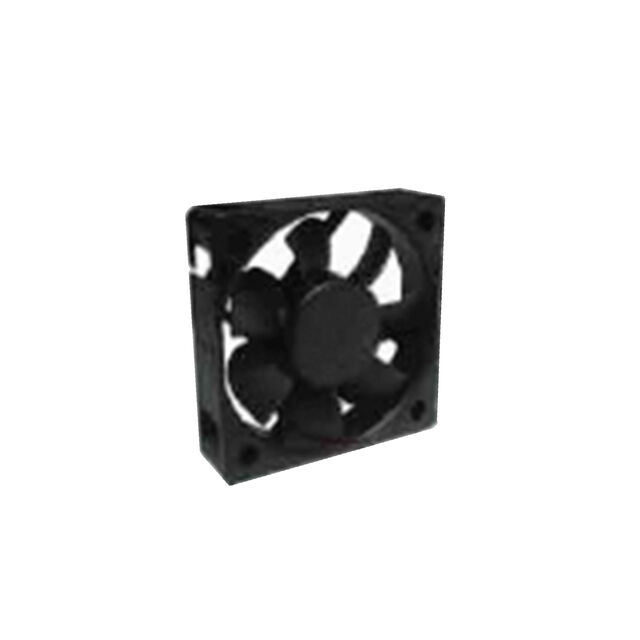

FAN AXIAL 40X10.5MM 5VDC WIRE

Search across all available documentation for this part.

Active

YS TECH USA

FAN AXIAL 40X10.5MM 5VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	NYW04010005LL-5

Air Flow	5.1 CFM
Air Flow	0.143 m³/min
Bearing Type	Sintec
Current Rating (Amps)	70 mA
Fan Type	Tubeaxial
Lifetime @ Temp.	50000 Hrs
Material - Blade	Polybutylene Terephthalate (PBT)
Noise	17.5 dB(A)
Power (Watts)	350 mW
RPM	5000 RPM
Size / Dimension	Square
Size / Dimension [x]	40 mm
Size / Dimension [z]	40 mm
Static Pressure	16.7 Pa
Static Pressure	0.067 in H2O
Termination	2 Wire Leads
Voltage - Rated	5 V
Voltage Range [Max]	5.5 V
Voltage Range [Min]	4 VDC
Width [x]	10.5 mm

FAN AXIAL 40X10.5MM 5VDC WIRE

Part	Power (Watts)	RPM	Voltage Range [Min]	Voltage Range [Max]	Voltage - Rated	Noise	Fan Type	Material - Blade	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Bearing Type	Lifetime @ Temp.	Air Flow	Air Flow	Static Pressure	Static Pressure	Termination	Current Rating (Amps)	Width [x]
YS TECH USA NYW04010005LL-5	350 mW	5000 RPM	4 VDC	5.5 V	5 V	17.5 dB(A)	Tubeaxial	Polybutylene Terephthalate (PBT)	40 mm	Square	40 mm	Sintec	50000 Hrs	5.1 CFM	0.143 m³/min	16.7 Pa	0.067 in H2O	2 Wire Leads	70 mA	10.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 5VDC Square - 40mm L x 40mm H Sintec 5.1 CFM (0.143m³/min) 2 Wire Leads
