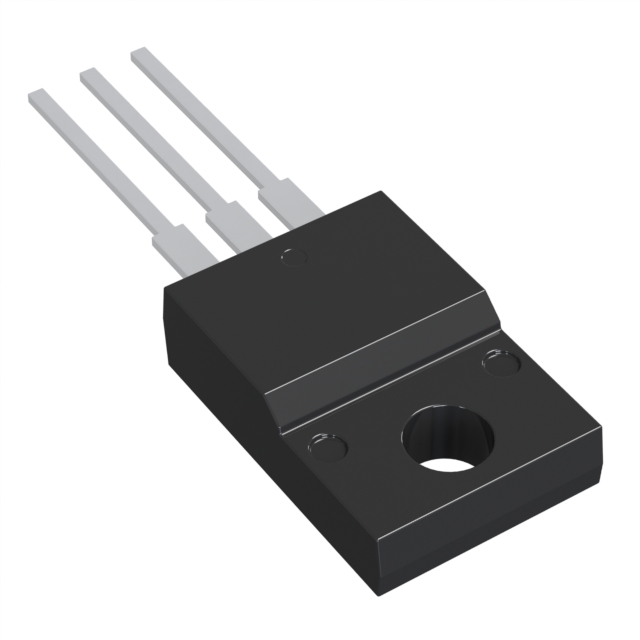

SDT20100CTFP

Active

Diodes Inc

TRENCH SCHOTTKY RECTIFIER 100V 150A 3-PIN ITO-220AB THROUGH HOLE TUBE

Search across all available documentation for this part.

Active

Diodes Inc

TRENCH SCHOTTKY RECTIFIER 100V 150A 3-PIN ITO-220AB THROUGH HOLE TUBE

Technical Specifications

Parameters and characteristics for this part

Specification	SDT20100CTFP

Current - Average Rectified (Io) (per Diode)	10 A
Current - Reverse Leakage @ Vr	80 µA
Diode Configuration	1 Pair Common Cathode
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	TO-220-3 Full Pack, Isolated Tab
Speed	200 mA, 500 ns
Supplier Device Package	ITO-220AB
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	100 V
Voltage - Forward (Vf) (Max) @ If [Max]	710 mV

20A TRENCH SCHOTTKY RECTIFIER

Part	Package / Case	Voltage - DC Reverse (Vr) (Max) [Max]	Mounting Type	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Diode Configuration	Current - Average Rectified (Io) (per Diode)	Supplier Device Package	Technology	Speed	Voltage - Forward (Vf) (Max) @ If [Max]	Current - Reverse Leakage @ Vr
Diodes Inc SDT20100CTFP	TO-220-3 Full Pack Isolated Tab	100 V	Through Hole	150 °C	-55 °C	1 Pair Common Cathode	10 A	ITO-220AB	Schottky	200 mA 500 ns	710 mV	80 µA
Diodes Inc SDT20100CTB-13	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	100 V	Surface Mount	150 °C	-55 °C	1 Pair Common Cathode	10 A	TO-263	Schottky	200 mA 500 ns	710 mV	80 µA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

The SDT20100 provides very low VFand extremely excellent reverse leakage stability at high temperatures.
