56.OW69.1200N - 56.OW69.1200N

56.OW69.1200N

Active

Altech Corporation

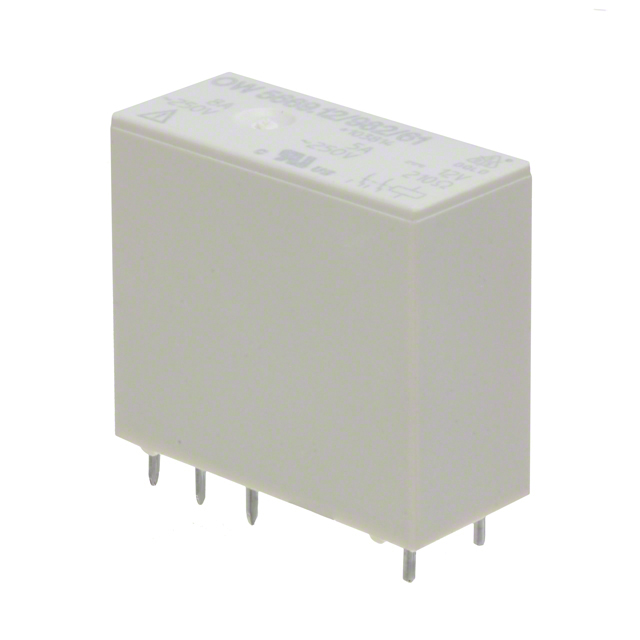

RELAY SAFETY DPDT 8A 12V

Deep-Dive with AI

Search across all available documentation for this part.

56.OW69.1200N - 56.OW69.1200N

56.OW69.1200N

Active

Altech Corporation

RELAY SAFETY DPDT 8A 12V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 29.77
		10	$ 26.00
		30	$ 24.38
		50	$ 23.66
		100	$ 22.71
		250	$ 21.52
Newark	Each	1	$ 30.58
		25	$ 28.02
		50	$ 26.03
		100	$ 25.17
		250	$ 24.32

Description

General part information

56.OW69 Series

RELAY SAFETY DPDT 8A 12V

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	56.OW69.1200N	56.OW69 Series

	-	-
Coil Current	57 mA	29 - 66.7 mA
Coil Resistance	210 Ohms	150 - 820 Ohms
Coil Voltage	12 VDC	10 - 24 VDC
Contact Form	DPDT (2 Form C)	DPDT (2 Form C)
Contact Material	Silver Nickel (AgNi), Gold (Au)	Silver Nickel (AgNi), Gold (Au)
Contact Rating (Current)	8 A	8 A
Features	Sealed - Fully	Sealed - Fully
Mounting Type	Through Hole	Through Hole
Must Operate Voltage	9.6 VDC	8 - 19.2 VDC
Operate Time	15 ms	15 ms
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-40 °C	-40 °C
Release Time	12 ms	12 ms
Switching Voltage [Max]	250 VDC, 400 VAC	250 - 400 VDC
Termination Style	PC Pin	PC Pin

56.OW69 Series

POWER RELAY, THROUGH HOLE

Part	Operate Time	Must Operate Voltage	Features	Contact Material	Termination Style	Coil Current	Contact Form	Mounting Type	Switching Voltage [Max]	Coil Voltage	Release Time	Coil Resistance	Operating Temperature [Min]	Operating Temperature [Max]	Contact Rating (Current)
Altech Corporation 56.OW69.1000S	15 ms	8 VDC	Sealed - Fully	Gold (Au), Silver Nickel (AgNi)	PC Pin	66.7 mA	DPDT (2 Form C)	Through Hole	250 VDC, 400 VAC	10 VDC	12 ms	150 Ohms	-40 °C	70 °C	8 A
Altech Corporation 56.OW69.2000S
Altech Corporation 56.OW69.2011C
Altech Corporation 56.OW69.0611N
Altech Corporation 56.OW69.0511S
Altech Corporation 56.OW69.2411C
Altech Corporation 56.OW69.1100S
Altech Corporation 56.OW69.0600N
Altech Corporation 56.OW69.1100C
Altech Corporation 56.OW69.1200N	15 ms	9.6 VDC	Sealed - Fully	Gold (Au), Silver Nickel (AgNi)	PC Pin	57 mA	DPDT (2 Form C)	Through Hole	250 VDC, 400 VAC	12 VDC	12 ms	210 Ohms	-40 °C	70 °C	8 A
