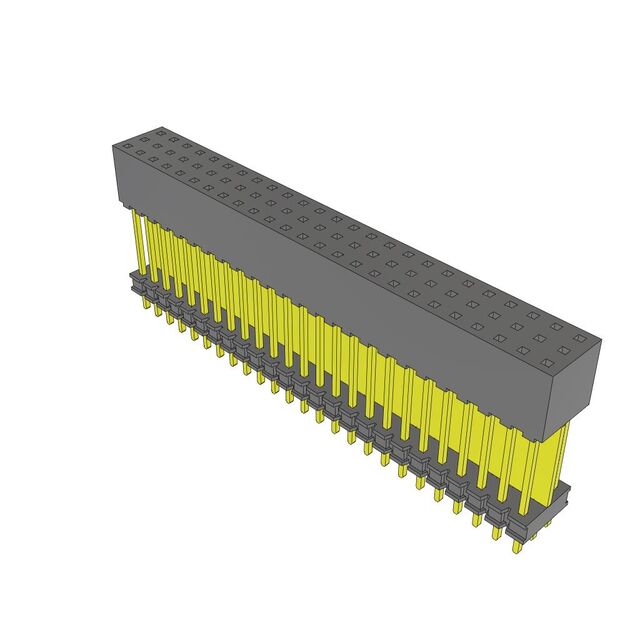

QST-110-01-G-T

Active

Samtec Inc.

BOARD TO BOARD & MEZZANINE CONNECTORS "2.00 MM POWER PLANE SOCKET STRIP\/

Search across all available documentation for this part.

Active

Samtec Inc.

BOARD TO BOARD & MEZZANINE CONNECTORS "2.00 MM POWER PLANE SOCKET STRIP\/

Technical Specifications

Parameters and characteristics for this part

Specification	QST-110-01-G-T

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	3 µin
Contact Finish Thickness - Post	0.076 µm
Contact Length - Post	5.38 mm
Contact Length - Post	0.212 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.638 "
Insulation Height	16.2 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole
Number of Positions	30
Number of Positions Loaded	All
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Termination	Solder

Board to Board & Mezzanine Connectors "2.00 mm Power Plane Socket Strip\/

Part	Mounting Type	Insulation Material	Contact Length - Post	Contact Length - Post	Number of Positions	Termination	Number of Positions Loaded	Contact Finish - Mating	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Number of Rows	Contact Finish - Post	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Row Spacing - Mating	Row Spacing - Mating	Contact Shape	Connector Type	Contact Type	Pitch - Mating [x]	Pitch - Mating [x]	Contact Finish Thickness - Post	Contact Finish Thickness - Post
Samtec Inc. QST-110-01-G-T	Through Hole	Liquid Crystal Polymer (LCP)	5.38 mm	0.212 in	30	Solder	All	Gold	Phosphor Bronze	-55 °C	125 °C	0.638 "	16.2 mm	3	Gold	Push-Pull	10 çin	0.25 çm	Black	0.079 in	2 mm	Square	Receptacle	Female Socket	0.079 in	2 mm	3 µin	0.076 µm
Samtec Inc. QST-121-01-S-T	Through Hole	Liquid Crystal Polymer (LCP)	5.38 mm	0.212 in	63	Solder	All	Gold	Phosphor Bronze	-55 °C	125 °C	0.638 "	16.2 mm	3	Tin	Push-Pull	30 Áin	0.76 Ám	Black	0.079 in	2 mm	Square	Receptacle	Female Socket	0.079 in	2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Board to Board & Mezzanine Connectors "2.00 mm Power Plane Socket Strip\/
