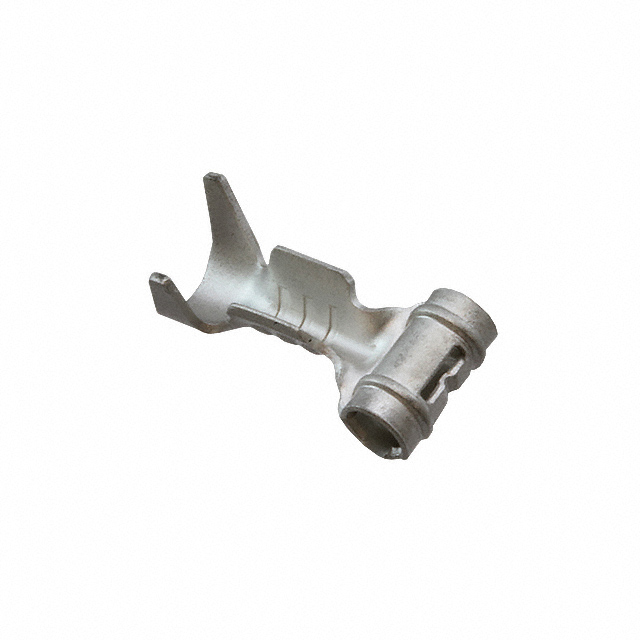

61323-2
ObsoleteTE Connectivity AMP Connectors
058 R/A PIN REC 24-20 TPBECU ROHS COMPLIANT: YES
61323-2
ObsoleteTE Connectivity AMP Connectors
058 R/A PIN REC 24-20 TPBECU ROHS COMPLIANT: YES
Description
General part information
61323 Series
Terminal Connector Female, Receptacle (Socket), Flag 20-24 AWG Crimp Tin
Technical Specifications
Parameters and characteristics for this part
| Specification | 61323-2 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Beryllium Copper |
| Diameter - Barrel | 0.058 in |
| Insulation | Non-Insulated |
| Insulation Diameter (Max) | 0.1 in |
| Insulation Diameter (Min) | 0.04 in |
| Length - Barrel | 0.168 in |
| Terminal Type | Female, Flag, Receptacle (Socket) |
| Termination | Crimp |
| Wire Gauge (AWG) (Max) | 24 AWG |
| Wire Gauge (AWG) (Min) | 19.5 AWG |
